Запчасти Case 590SN (35.738.0102) - VAR - 423075 - CYLINDER - BACKHOE BUCKET (35) - HYDRAULIC SYSTEMS

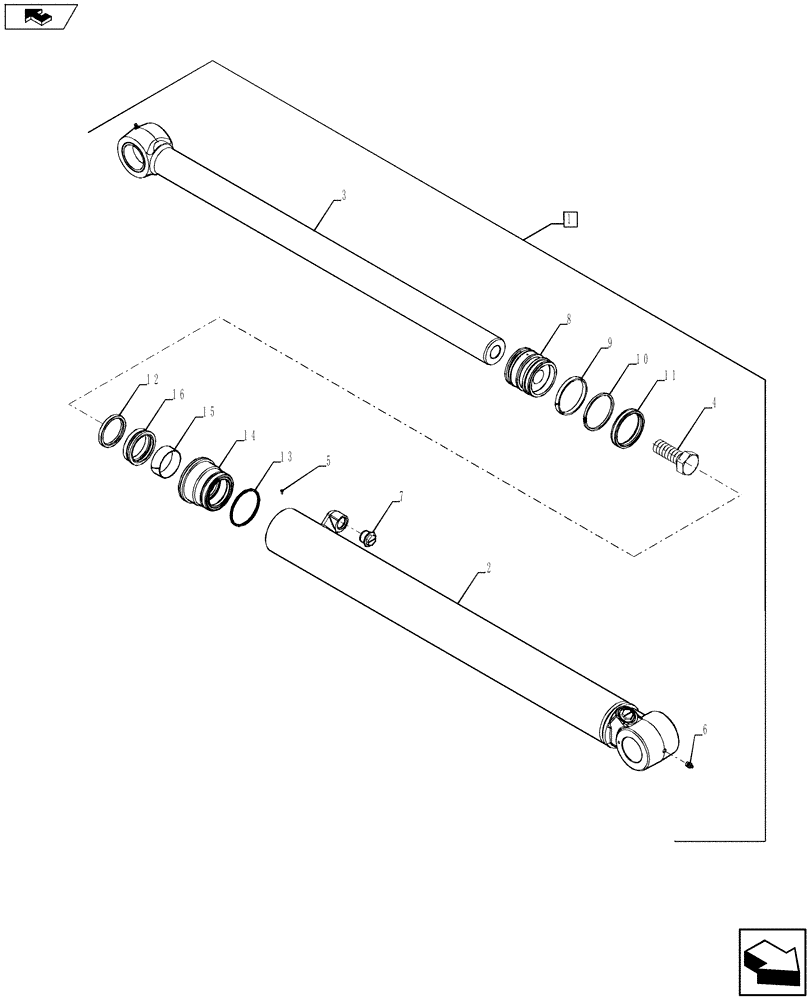

Схема запчастей Case 590SN - (35.738.0102) - VAR - 423075 - CYLINDER - BACKHOE BUCKET (35) - HYDRAULIC SYSTEMS
13
15
4
home
14
6
1
5
3
7
16
11
8
9
12
2
10

Артикул

Название

Примечание

Количество

1

84210936

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 989.4mm Stroke

1шт.

2

84232667

BARREL,88.75mm Bore Dia

1шт.

3

84323190

ROD,63.5mm OD x 1229.2mm L

1шт.

4

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-782

PLUG,Slotted, 1 1/16"-12

2шт.

8

84232661

PISTON ROD/GLAND,87.41mm Bore, 63.5mm Rod, 74.65mm W

1шт.

9

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

10

238799A1

SEALING RING,Locking, 80.65mm ID x 88.77mm OD x 4.74mm Thk

1шт.

11

87715783

SEAL,76.45mm ID x 88.9mm OD

1шт.

12

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

13

84130482

SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk

1шт.

14

NS

NOT SERVICED

1шт.

15

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

16

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

1шт.

Выбрано товаров: 16
