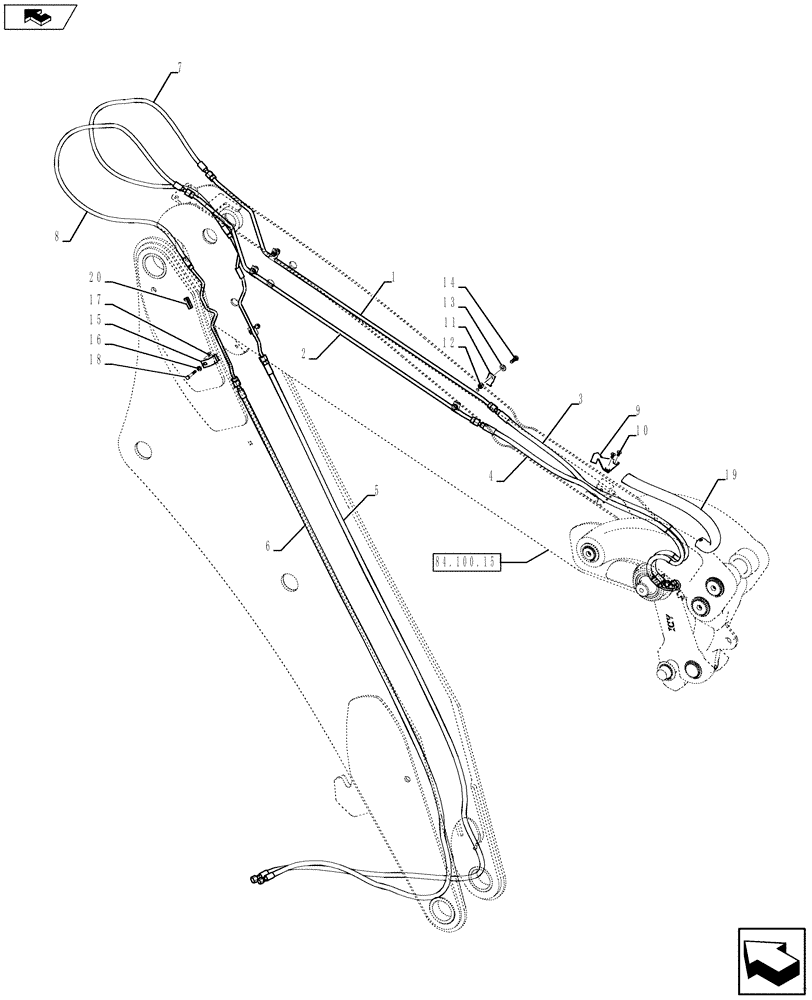

Запчасти Case 590SN (35.737.0401) - HYDRAULICS - COUPLER, BACKHOE BUCKET (EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS

1

84263539

HYD TUBE

Left Hand

1шт.

2

84263543

HYD TUBE

Right Hand

1шт.

3

84338030

HYD TUBE

Dipper to Coupler Left Hand

1шт.

4

84338027

HYD TUBE

Dipper to Coupler Right Hand

1шт.

5

84329636

HOSE ASSY.,6.3mm ID x 2992mm L

Coupler Boom Left hand

1шт.

6

84329637

HOSE ASSY.,6.3mm ID x 2927mm L

Coupler Boom Right Hand

1шт.

7

84263545

HYD TUBE

Coupler Boom to Dipper Left Hand

1шт.

8

84263547

HYD TUBE

Coupler Boom to Dipper Right Hand

1шт.

9

87418551

CLAMP

1шт.

10

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

2шт.

11

84261209

CLAMP,1/2" clamping pipes

4шт.

12

412141

NUT,M10 x 1.5, Cl 8

4шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

14

935388

BOLT,Hex, M10 x 28mm, Cl 8.8, Full Thd

4шт.

15

84269591

CLAMP,1/2" clamping pipes

2шт.

16

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

17

412250

NUT,M8 x 1.25, Cl 8

2шт.

18

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

19

84355976

PROTECTIVE SLEEVE,56mm ID x 590mm L

1шт.

20

84372989

GUARD

2шт.
