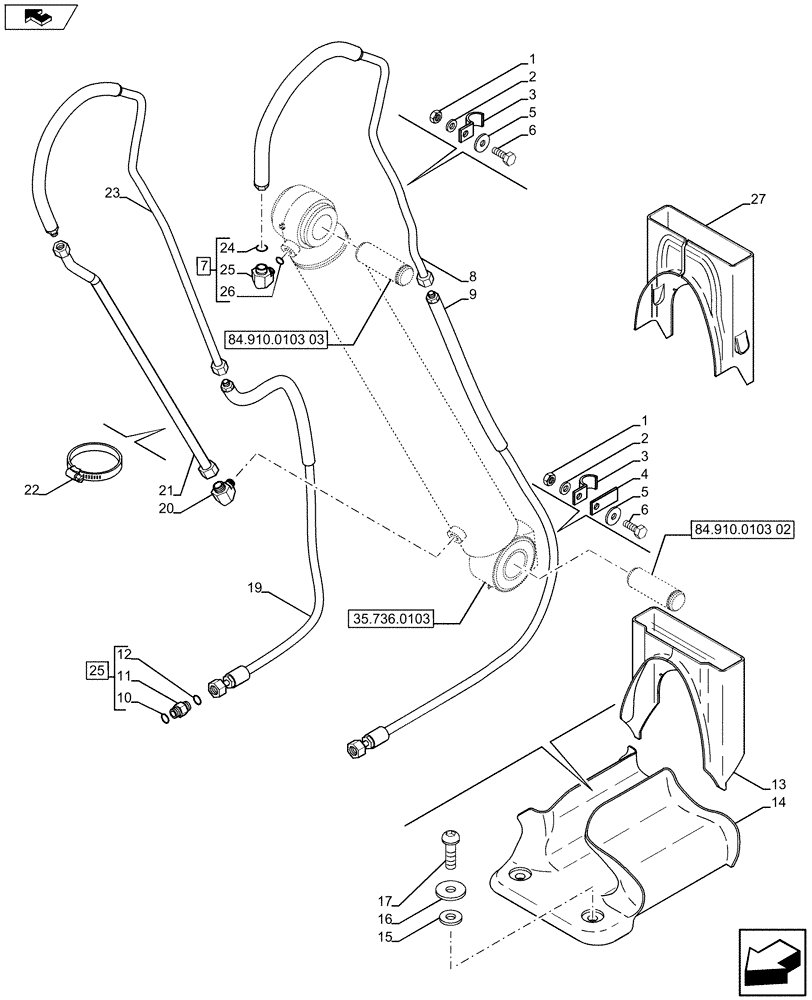

Запчасти Case 590SN (35.736.0203) - BACKHOE ARM, BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

412141

NUT,M10 x 1.5, Cl 8

4шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

3

84367726

CLAMP,3/4" Clamping tube

2шт.

4

84259030

SPACER

4шт.

5

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

6

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

7

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Assy, Incl 24 - 26

1шт.

8

84276922

HYD TUBE

1шт.

9

84263823

HYDRAULIC HOSE,16mm ID x 2247mm L

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Hyd. connector; Incl in 18

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

84303527

GUARD

, Serial Range: -C9005

1шт.

14

84303525

GUARD

1шт.

15

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

16

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

17

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

18

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 10 - 12

4шт.

19

84281986

HYDRAULIC HOSE,19mm ID x 2262mm L

1шт.

20

87656136

HYD CONNECTOR

1шт.

21

84276920

HYD TUBE

1шт.

22

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

2шт.

23

84276924

HYD TUBE

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

NSS

NOT SOLD SEPARAT

Hyd. connector; Incl in 7

1шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

27

84574630

GUARD

, Start Serial: D9005

1шт.
