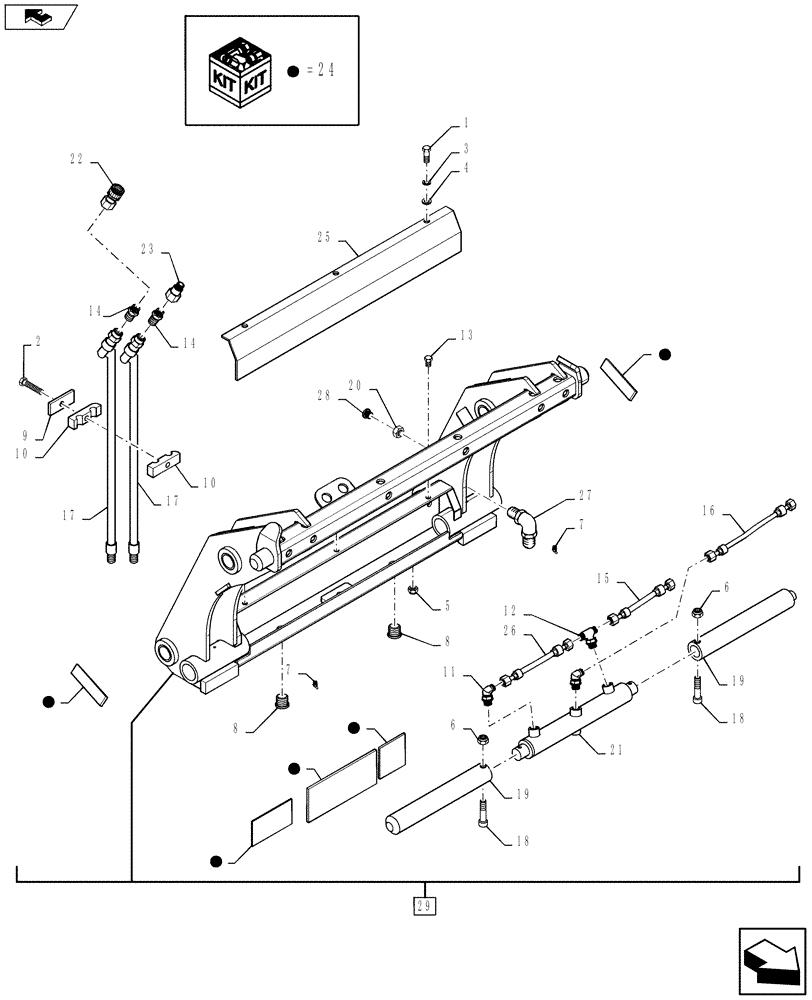

Запчасти Case 590SN (35.734.01) - VAR - 423049 - COUPLER, TOOL QUICK (35) - HYDRAULIC SYSTEMS

1

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

2

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

3

80681

LOCK WASHER,5/16"

3шт.

4

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

3шт.

5

86050277

NUT,5/16"-18, GB

1шт.

6

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

7

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

8

305497A1

PLUG,1.25" x 0.5"

2шт.

9

87493782

PLATE

1шт.

10

87483067

CLAMP

1шт.

11

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

2шт.

12

84368922

BRANCH TEE,11/16"-16 ORFS x 9/16" ORB

1шт.

13

87472321

FASTENER

3шт.

14

84523391

FITTING,3/8" ID, 3/8" OD

2шт.

15

84518946

HYDRAULIC HOSE,6.3mm ID x 244mm L

1шт.

16

84518948

HYDRAULIC HOSE,6.3mm ID x 353mm L

1шт.

17

84518949

HYDRAULIC HOSE,16mm ID x 1016mm L

2шт.

18

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

2шт.

19

305496A1

PIN,49.23mm OD x 381mm L

2шт.

20

87310

NUT,Jam, 9/16"-18, G2

2шт.

21

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

1шт.

22

86537745

COUPLING, QUICK, FEM,27mm ID

1шт.

23

86537746

QUICK MALE COUPLING,27mm OD, 1.062 - 12" OD

1шт.

24

305508A1

DECAL KIT

1шт.

25

84189105

COVER

1шт.

26

84519649

HYDRAULIC HOSE,6.3mm ID x 241mm L

1шт.

27

84326219

90 ELBOW,9/16"-18 ORFS

2шт.

28

87668376

CAP,9/16"-18 Inch THD

2шт.

29

84265982

COUPLING

Assy, Incl 1 - 28

1шт.
