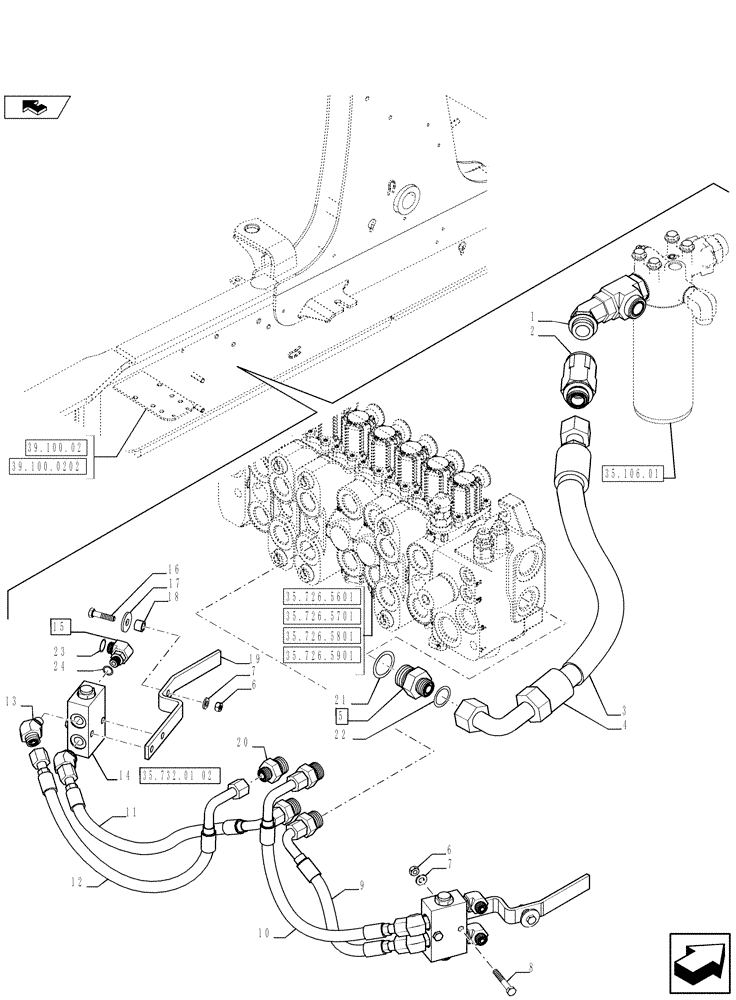

Запчасти Case 590SN (35.732.0101) - VAR - X20233X - HYDRAULICS - CHECK VALVE INSTALL, STABILIZER CYLINDERS (35) - HYDRAULIC SYSTEMS

1

84256602

45 ELBOW,16 ORB Male x 16 ORFS Female

1шт.

2

84377913

CHECK VALVE

1шт.

3

84257105

HYDRAULIC HOSE,25.4mm ID x 924mm L

1шт.

4

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

5

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Assy, Incl 21 - 22

1шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

8

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

9

84256419

HYD TUBE,10mm ID x 355mm L

1шт.

10

84256418

HYD TUBE,10mm ID x 455mm L

1шт.

11

84256421

HYD TUBE,10mm ID x 410mm L

1шт.

12

84256420

HYD TUBE,10mm ID x 529mm L

1шт.

13

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

4шт.

14

85802820

CHECK VALVE

Assy

2шт.

15

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 23 - 24

4шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

18

87437840

SPACER,11.5mm L

2шт.

19

87450318

BRACKET

2шт.

20

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

4шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
