Запчасти Case 590SN (35.732.01[01]) - VAR - X20233X - HYDRAULICS - BACKHOE STABILIZER (35) - HYDRAULIC SYSTEMS

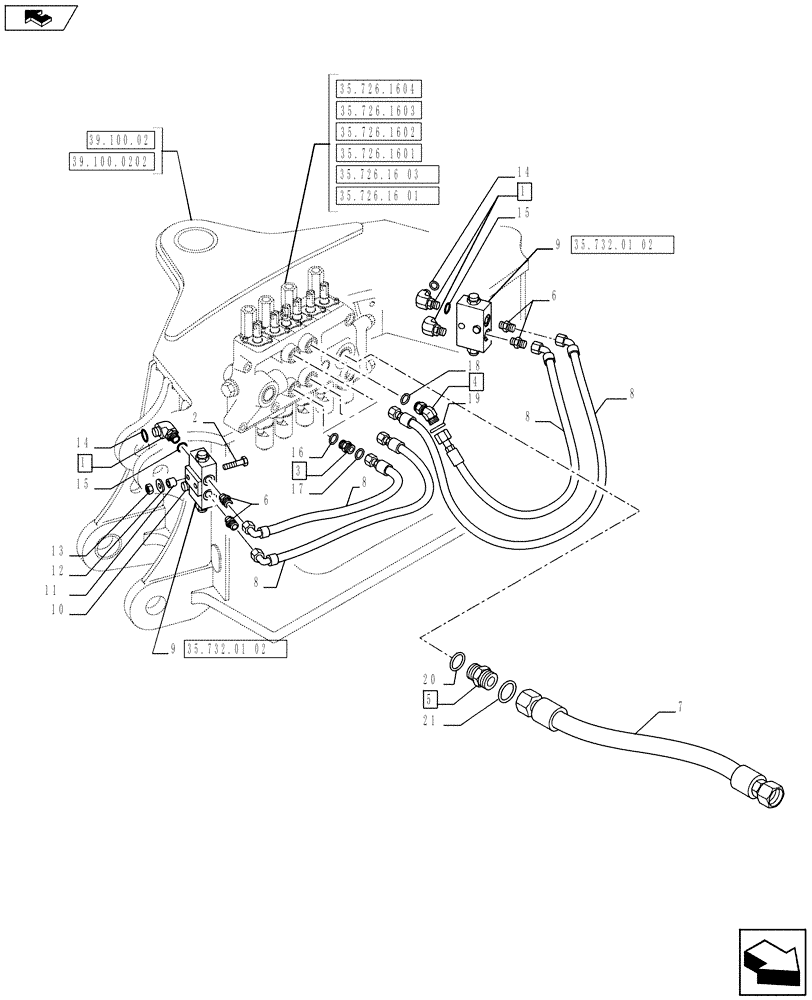

Схема запчастей Case 590SN - (35.732.01[01]) - VAR - X20233X - HYDRAULICS - BACKHOE STABILIZER (35) - HYDRAULIC SYSTEMS
18
35.732.01 02
8
14
39.100.0202
15
35.732.01 02
10
17
15
1
8
14
6
35.726.1604
8
35.726.1603
35.726.16 01
35.726.1601
20
19
21
3
16
5
8
9
39.100.02
4
11
12
35.726.1602
2
7
6
1
13
9
35.726.16 03
home

Артикул

Название

Примечание

Количество

1

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 14 - 15

4шт.

2

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

3

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Assy, Incl 16 - 17

3шт.

4

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Assy, Incl 18 - 19

1шт.

5

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Assy, Incl 20 - 21

1шт.

6

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

4шт.

7

84257103

HYDRAULIC HOSE,25.4mm ID x 790mm L

1шт.

8

84256813

HYD TUBE,10mm ID x 719mm L

4шт.

9

85802820

CHECK VALVE

Assy

2шт.

10

84321344

SPACER

2шт.

11

87437840

SPACER,11.5mm L

2шт.

12

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

6шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
