Запчасти Case 590SN (35.726.5901[02]) - BACKHOE CONTROL VALVE, 8-SPOOL, W/ STANDARD DIPPER, W/ DOUBLE AUXILIARY HYDRAULICS, W/ PILOT CONTROLS - D9006 (35) - HYDRAULIC SYSTEMS

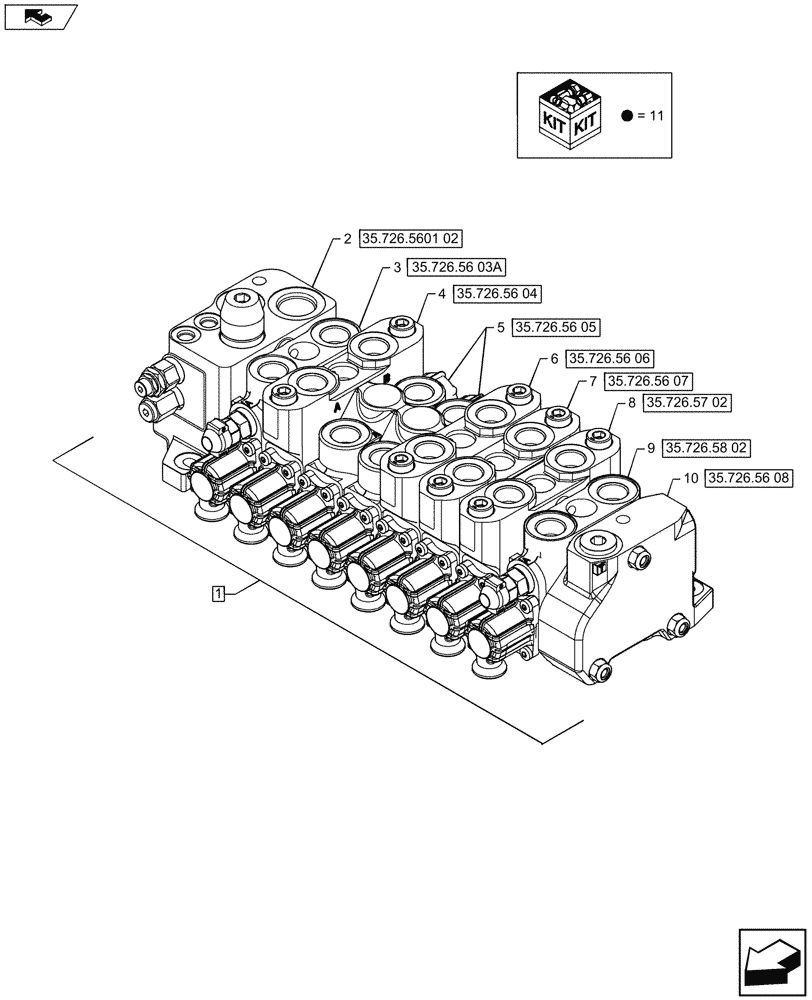

Схема запчастей Case 590SN - (35.726.5901[02]) - BACKHOE CONTROL VALVE, 8-SPOOL, W/ STANDARD DIPPER, W/ DOUBLE AUXILIARY HYDRAULICS, W/ PILOT CONTROLS - D9006 (35) - HYDRAULIC SYSTEMS
35.726.58 02
10
7
3
9
8
6
5
1
2
home
4
35.726.56 07
35.726.5601 02
35.726.56 06
35.726.56 04
35.726.56 08
35.726.56 03a
35.726.56 05
35.726.57 02

Артикул

Название

Примечание

Количество

1

84551844

CONTROL VALVE

Assy, Incl 2 - 10

1шт.

2

84278712

HYD VALVE SECTION

Inlet Section, Assy

1шт.

3

84586031

HYD VALVE SECTION

Swing Section, Assy

1шт.

4

84278714

HYD VALVE SECTION

Boom Section, Assy

1шт.

4

84278714R

REMAN-HYD VALVE

Reman Boom Section, Assy

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

Stabilizer Section, Assy

2шт.

6

84278710

HYD VALVE SECTION

Dipper Section, Assy

1шт.

7

84278702

HYD VALVE SECTION

Bucket Section, Assy

1шт.

8

84278692

HYD VALVE SECTION

Extendable Dipper Section, Assy

1шт.

9

84278691

HYD VALVE SECTION

Bi-Dir Section, Assy

1шт.

10

85811915

HYD VALVE SECTION

Outlet Section, Assy

1шт.

11

87447477

SET OF PARTS

1шт.

Выбрано товаров: 13
