Запчасти Case 590SN (35.726.5801[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, W/ STANDARD DIPPER, W/ DOUBLE AUXILIARY HYDRAULICS, W/ PILOT CONTROLS - C9006 (35) - HYDRAULIC SYSTEMS

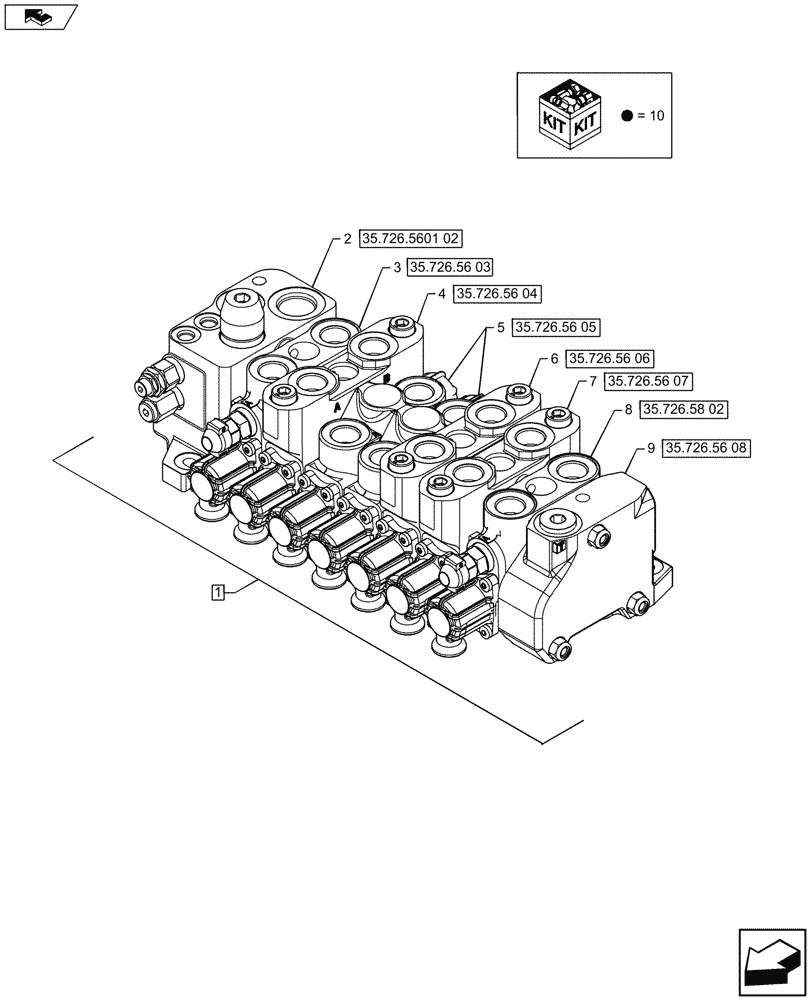

![Схема запчастей Case 590SN - (35.726.5801[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, W/ STANDARD DIPPER, W/ DOUBLE AUXILIARY HYDRAULICS, W/ PILOT CONTROLS - C9006 (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/3696620.png)
35.726.58 02
3
7
9
6
1
5
4
8
home
2
35.726.56 07
35.726.5601 02
35.726.56 06
35.726.56 04
35.726.56 08
35.726.56 03
35.726.56 05
№
Артикул
Название
Примечание
Количество
1
84269981
PILOT VALVE
Assy, Incl 2 - 10
1шт.
2
84278712
HYD VALVE SECTION
Assy
1шт.
3
87751023
HYD VALVE SECTION
Assy
1шт.
4
84278714
HYD VALVE SECTION
Assy
1шт.
4
84278714R
REMAN-HYD VALVE
Reman Assy
1шт.
4
84278714C
CORE-VALVE HYD
Core Return Number
1шт.
5
84157939
HYD VALVE SECTION
Assy
2шт.
6
84278710
HYD VALVE SECTION
Assy
1шт.
7
84278702
HYD VALVE SECTION
Assy
1шт.
8
84278691
HYD VALVE SECTION
Assy
1шт.
9
85811915
HYD VALVE SECTION
Assy
1шт.
10
87751102
BOLT
1шт.
Выбрано товаров: 12
