Запчасти Case 590SN (35.726.57[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, W/ EXTENDABLE DIPPER, W/ PILOT CONTROLS - C9006 (35) - HYDRAULIC SYSTEMS

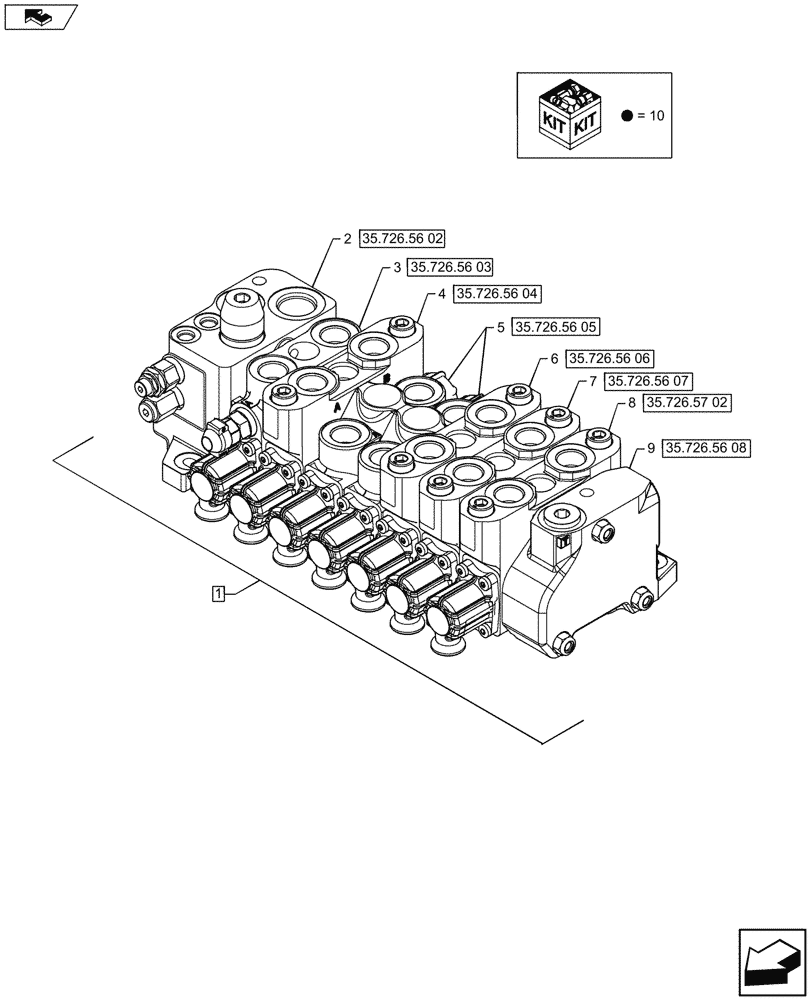

Схема запчастей Case 590SN - (35.726.57[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, W/ EXTENDABLE DIPPER, W/ PILOT CONTROLS - C9006 (35) - HYDRAULIC SYSTEMS
35.726.57 02
5
home
4
2
3
8
7
6
1
9
35.726.56 07
35.726.56 02
35.726.56 06
35.726.56 04
35.726.56 08
35.726.56 03
35.726.56 05

Артикул

Название

Примечание

Количество

1

84214059

PILOT VALVE

Assy, Incl 2 - 10

1шт.

2

84355708

HYD VALVE SECTION

Assy

1шт.

3

87751023

HYD VALVE SECTION

Assy

1шт.

4

84278714

HYD VALVE SECTION

Assy

1шт.

4

84278714R

REMAN-HYD VALVE

Reman Assy

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

Assy

2шт.

6

84278710

HYD VALVE SECTION

Assy

1шт.

7

84278702

HYD VALVE SECTION

Assy

1шт.

8

84278692

HYD VALVE SECTION

Assy

1шт.

9

85811915

HYD VALVE SECTION

Assy

1шт.

10

87751102

BOLT

1шт.

Выбрано товаров: 12
