(35.726.56[05]) - VALVE - BACKHOE, STABILIZER (WITH PILOT CONTROLS)

Запчасти Case 590SN (35.726.56[05]) - VALVE - BACKHOE, STABILIZER (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

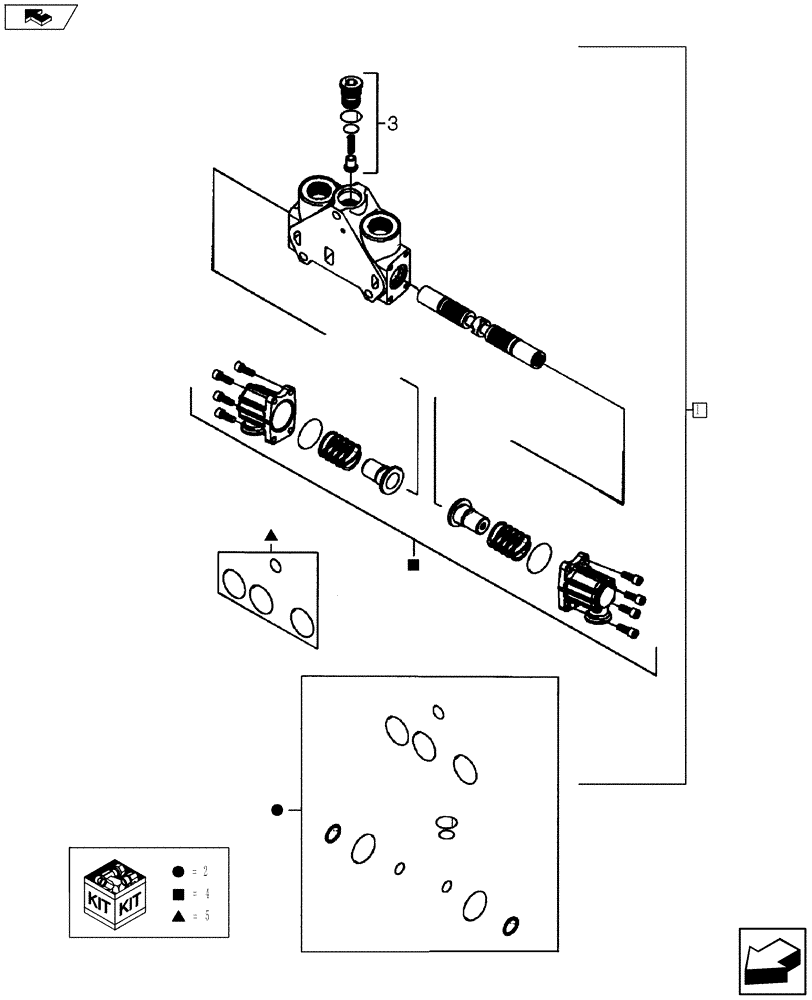

Схема запчастей Case 590SN - (35.726.56[05]) - VALVE - BACKHOE, STABILIZER (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
2
2
5
home
1
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84157939

HYD VALVE SECTION

Assy, Incl 2 - 5

2шт.

2

87617657

O-RING KIT

1шт.

3

84157941

COMPENSATOR

1шт.

4

85826344

KIT,Operation

1шт.

5

85825473

SEAL KIT

1шт.
