(35.726.56[03]) - BACKHOE CONTROL VALVE, SWING SECTION, W/ PILOT CONTROLS - C9006

Запчасти Case 590SN (35.726.56[03]) - BACKHOE CONTROL VALVE, SWING SECTION, W/ PILOT CONTROLS - C9006 (35) - HYDRAULIC SYSTEMS

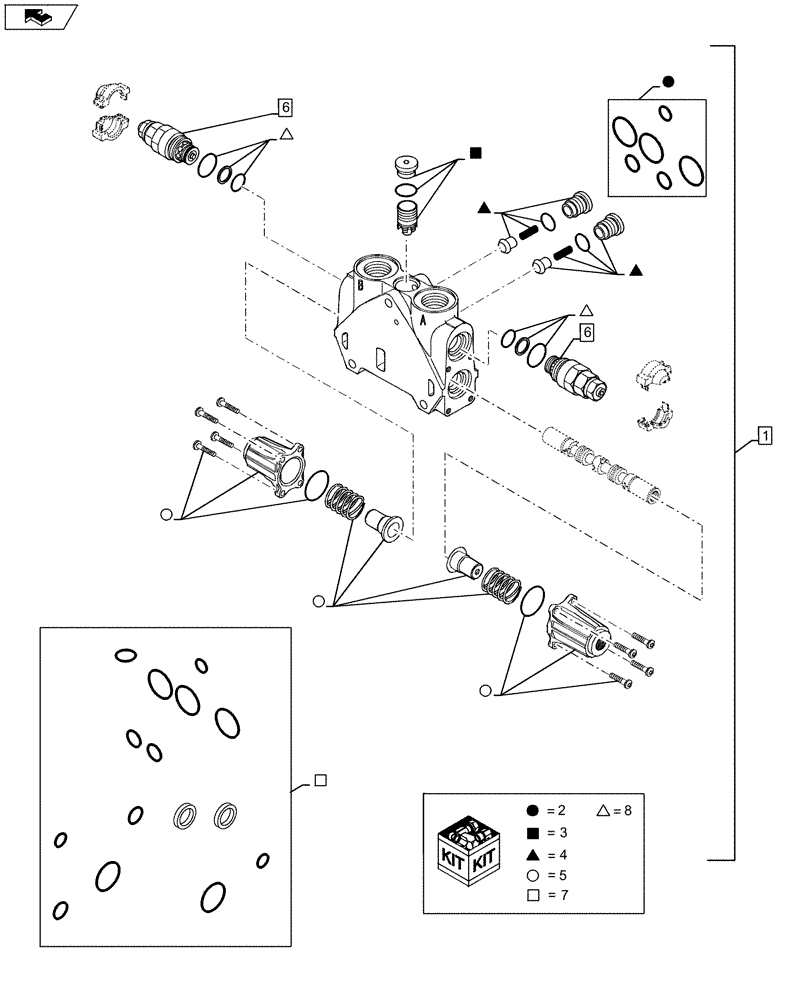

Схема запчастей Case 590SN - (35.726.56[03]) - BACKHOE CONTROL VALVE, SWING SECTION, W/ PILOT CONTROLS - C9006 (35) - HYDRAULIC SYSTEMS
2
6
5
6
home
5
2
3
3
8
4
7
8
5
1
4
4
8
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87751023

HYD VALVE SECTION

Assy, Incl 2 - 8

1шт.

2

85819148

SEAL KIT,Between Control Valve Sections

1шт.

3

85826345

KIT,Pressure Compensator

1шт.

4

85811938

KIT,Check Valve

1шт.

5

85826344

KIT,Operation

1шт.

6

85812114

HYDRAULIC VALVE,205Bar

Assy, Incl 8

1шт.

7

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

8

85811933

SEAL KIT,Secondary Valve

2шт.
