Запчасти Case 590SN (35.726.55) - HYDRAULICS - VALVE, PRESSURE REDUCING (4 SPOOL) (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

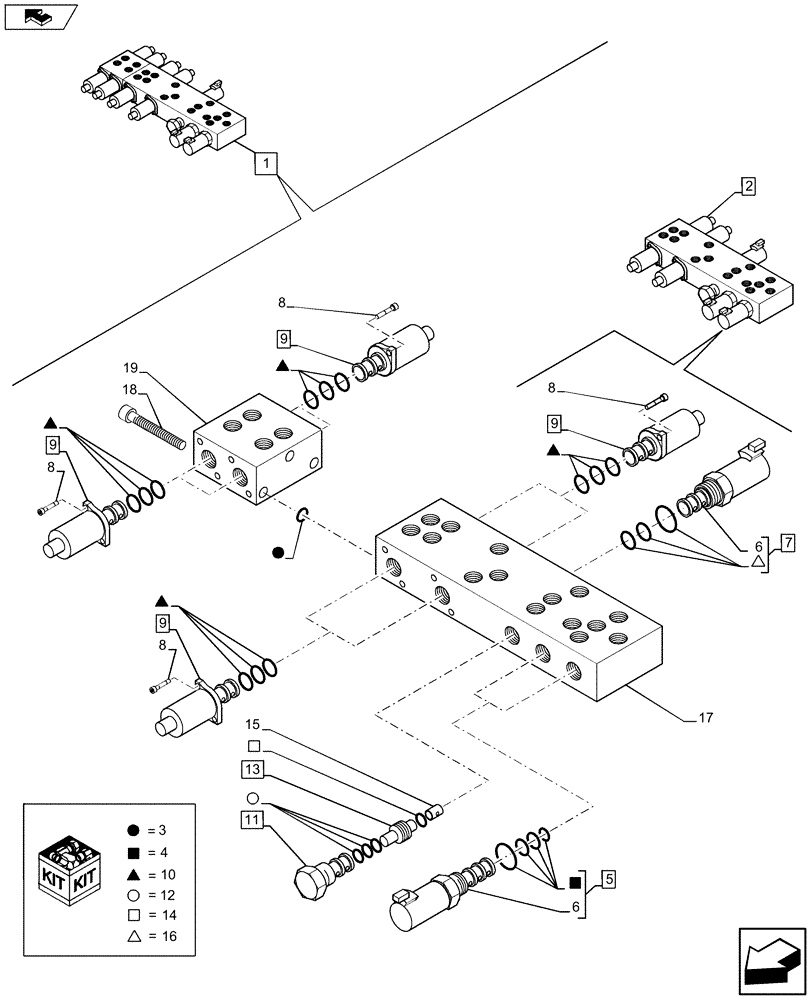

Схема запчастей Case 590SN - (35.726.55) - HYDRAULICS - VALVE, PRESSURE REDUCING (4 SPOOL) (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
12
9
13
18
9
17
8
19
15
9
12
4
9
8
11
5
8
16
home
6
2
1
10
10
10
8
6
14
3
10
4
3
7
4
16
10

Артикул

Название

Примечание

Количество

1

87434621

CONTROL VALVE

Assy, Incl 2 - 19

1шт.

2

85828015

BLOCK

Assy, Incl 4 - 17

1шт.

3

85827999

SEAL KIT

1шт.

4

85828002

SEAL KIT

2шт.

5

85827996

SOLENOID VALVE,2 Section

Assy, Incl 4, 6

2шт.

Pattern Change Solenoids

1шт.

6

85827995

COIL

1шт.

7

85827994

SOLENOID VALVE

Assy, Incl 6, 16

1шт.

Joystick Enable Solenoid

1шт.

8

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

16шт.

9

85827993

SOLENOID VALVE

Assy, Incl 8, 10

8шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract/Extend PWM, Bi-Dir Aux A/B Port PWM

1шт.

10

85828000

SEAL KIT

8шт.

11

85827997

VALVE

Assy, Incl 12

1шт.

12

85828001

SEAL KIT

1шт.

13

85827992

CHECK VALVE

Assy, Incl 14

1шт.

14

85828003

O-RING,1mm Thk x 9mm ID

1шт.

15

85828005

ORIFICE

1шт.

16

85827998

SEAL KIT

1шт.

17

85828013

BLOCK

1шт.

18

85828061

SCREW,M5 x 80mm

M5 x 80

3шт.

19

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

Extension Block added for Optional Extendahoe and Bi-Dir Aux Functions

1шт.

Выбрано товаров: 23
