(35.726.53) - HYDRAULICS - VALVE, PRESSURE REDUCING (2 SPOOL) (WITH PILOT CONTROLS)

Запчасти Case 590SN (35.726.53) - HYDRAULICS - VALVE, PRESSURE REDUCING (2 SPOOL) (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

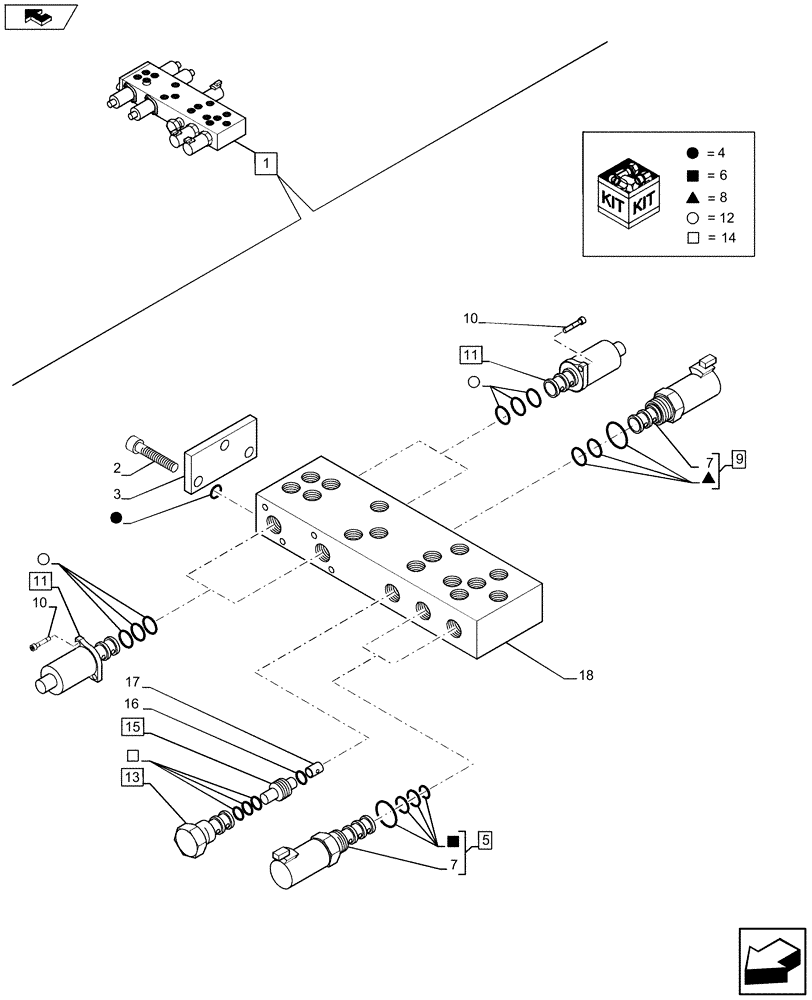

Схема запчастей Case 590SN - (35.726.53) - HYDRAULICS - VALVE, PRESSURE REDUCING (2 SPOOL) (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
home
6
18
11
14
15
3
9
16
10
14
2
4
13
4
7
12
17
8
6
12
7
10
11
5
12
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85827472

HYDRAULIC VALVE

Assy, Incl 2 - 18

1шт.

2

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

3шт.

3

85827991

PLATE

1шт.

4

85827999

SEAL KIT

1шт.

5

85827996

SOLENOID VALVE,2 Section

Assy, Incl 6 - 7

2шт.

Pattern Change

1шт.

6

85828002

SEAL KIT

2шт.

7

85827995

COIL

3шт.

8

85827998

SEAL KIT

1шт.

9

85827994

SOLENOID VALVE

Assy, Incl 7 - 8

1шт.

Joystick Enable

1шт.

10

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

8шт.

11

85827993

SOLENOID VALVE

Assy, Incl 12

4шт.

RH/LH Stab. Retract PWM & RH/LH Stab. Extend PWM

1шт.

12

85828000

SEAL KIT

4шт.

13

85827997

VALVE

Assy, Incl 14

1шт.

14

85828001

SEAL KIT

4шт.

15

85827992

CHECK VALVE

Assy, Incl 16

1шт.

16

85828003

O-RING,1mm Thk x 9mm ID

1шт.

17

85828005

ORIFICE

1шт.

18

85828013

BLOCK

1шт.
