(35.726.5101) - HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITH EXTENDABLE DIPPER, 8 SPOOL

Запчасти Case 590SN (35.726.5101) - HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITH EXTENDABLE DIPPER, 8 SPOOL (35) - HYDRAULIC SYSTEMS

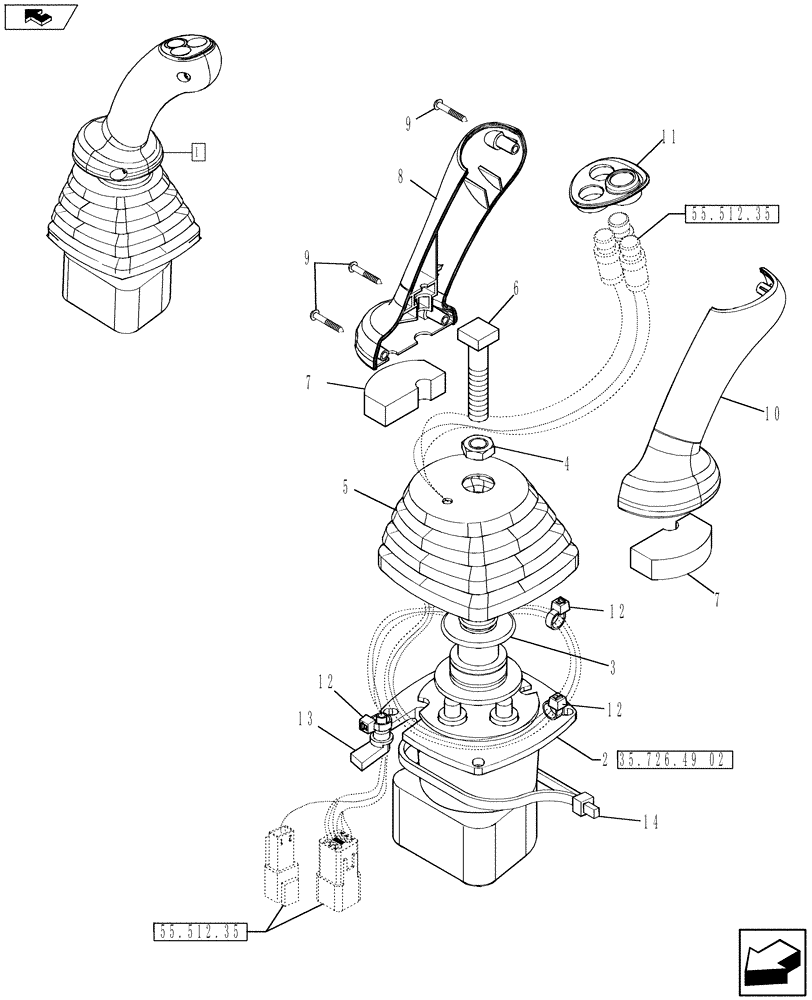

Схема запчастей Case 590SN - (35.726.5101) - HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITH EXTENDABLE DIPPER, 8 SPOOL (35) - HYDRAULIC SYSTEMS
9
35.726.49 02
14
1
12
7
6
10
4
12
9
55.512.35
12
55.512.35
13
home
8
2
7
11
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685957

JOYSTICK

Assy, Incl 2 - 13

1шт.

2

87687141

PILOT VALVE

Assy

1шт.

2

87687141R

REMAN-HYD VALVE

Reman Assy

1шт.

2

87687141C

CORE-VALVE HYD

Core return Number

1шт.

3

87436225

RETAINER,12.5mm ID, 46mm OD

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87443721

BOOT

1шт.

6

87428023

BOLT,Square Head, M12 x 1.75 x 60

1шт.

7

87435506

SEAL,52mmL

2шт.

8

87308838

HANDLE GRIP

1шт.

9

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

10

87308839

HANDLE GRIP

1шт.

11

87547309

BEZEL

1шт.

12

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

3шт.

13

87424267

GROMMET

1шт.

14

87438046

CABLE TIE,375.9 mm L x 8mm W

1шт.
