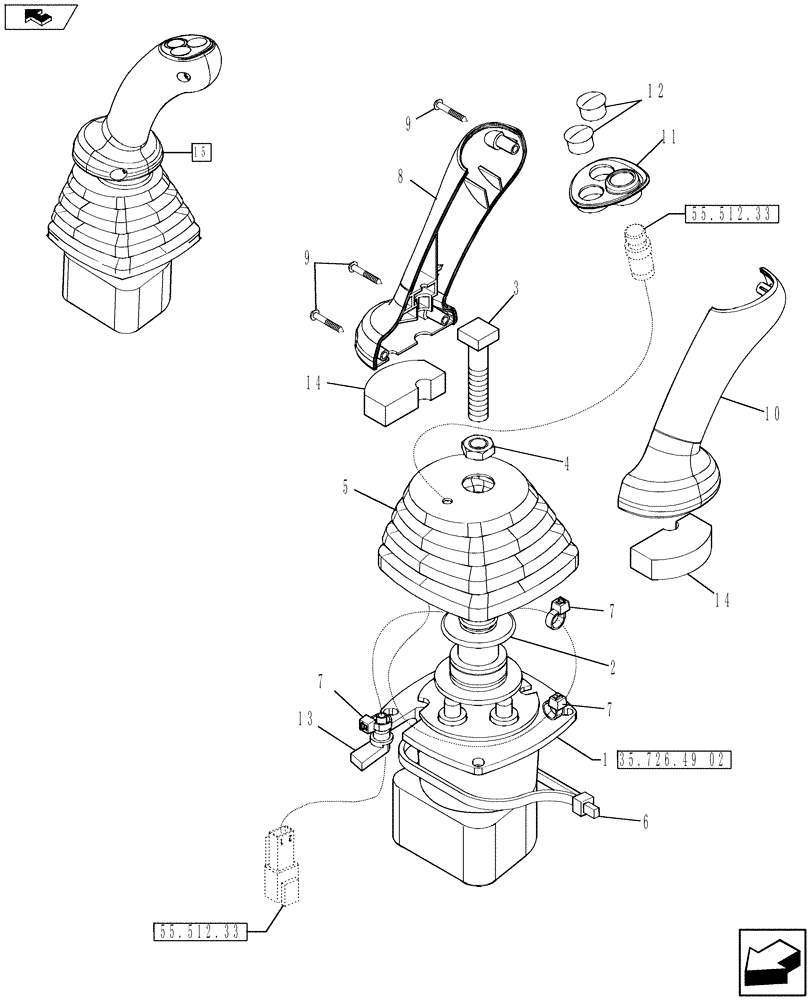

Запчасти Case 590SN (35.726.4901) - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITHOUT EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS

1

87687141

PILOT VALVE

Assy

1шт.

1

87687141R

REMAN-HYD VALVE

Reman Assy

1шт.

1

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

2

87436225

RETAINER,12.5mm ID, 46mm OD

1шт.

3

87428023

BOLT,Square Head, M12 x 1.75 x 60

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87443721

BOOT

1шт.

6

87438046

CABLE TIE,375.9 mm L x 8mm W

1шт.

7

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

1шт.

8

87308838

HANDLE GRIP

1шт.

9

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

10

87308839

HANDLE GRIP

1шт.

11

87547309

BEZEL

1шт.

12

86625128

PLUG,Dome, .562" hole, Nylon

2шт.

13

87424267

GROMMET

1шт.

14

87435506

SEAL,52mmL

2шт.

15

87685956

JOYSTICK

Assy, Incl 1 - 14

1шт.
