(35.726.4801) - VALVE - PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EHOE, W/ AUX HYDS) - D9006

Запчасти Case 590SN (35.726.4801) - VALVE - PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EHOE, W/ AUX HYDS) - D9006 (35) - HYDRAULIC SYSTEMS

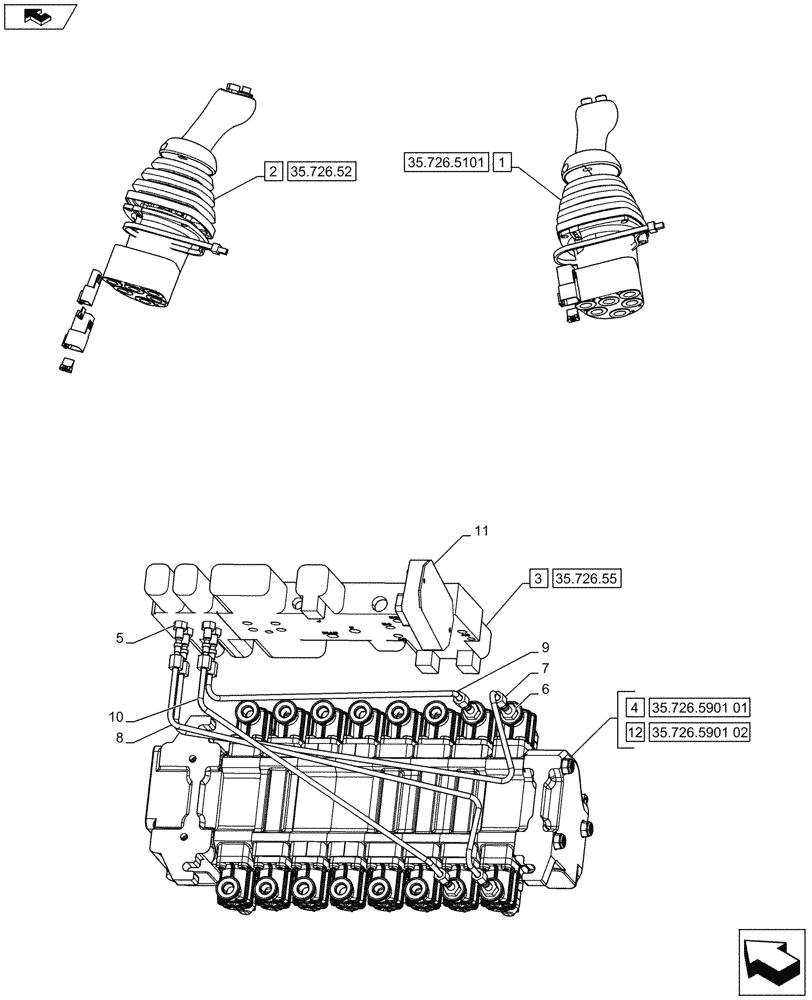

Схема запчастей Case 590SN - (35.726.4801) - VALVE - PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EHOE, W/ AUX HYDS) - D9006 (35) - HYDRAULIC SYSTEMS
35.726.5101
6
7
35.726.5901 01
11
5
35.726.5901 02
10
9
3
4
8
home
2
12
1
35.726.55
35.726.52
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685957

JOYSTICK

Assy

1шт.

2

87685952

JOYSTICK

Assy

1шт.

3

87434621

CONTROL VALVE

Assy

1шт.

4

84269980

PILOT VALVE

Assy, Serial Range: -C9006

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

4шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

4шт.

7

87440837

HYD TUBE

1шт.

8

87440835

HYD TUBE

1шт.

9

87437635

HYD TUBE

1шт.

10

87437633

HYD TUBE

1шт.

11

84266025

MODULE

1шт.

12

84551844

CONTROL VALVE

Assy, Start Serial: D9006

1шт.
