(35.726.4601) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) - D9006

Запчасти Case 590SN (35.726.4601) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) - D9006 (35) - HYDRAULIC SYSTEMS

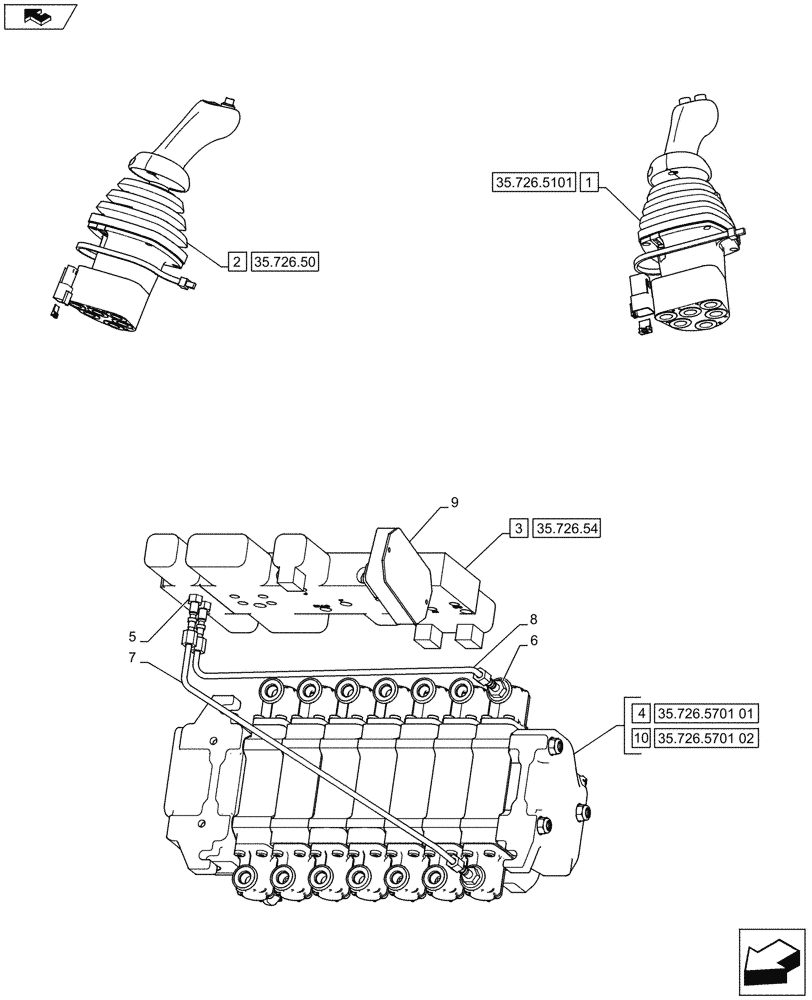

Схема запчастей Case 590SN - (35.726.4601) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) - D9006 (35) - HYDRAULIC SYSTEMS
35.726.54
8
3
9
10
6
35.726.5701 01
5
2
35.726.5701 02
1
7
home
4
35.726.5101
35.726.50
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685957

JOYSTICK

Assy

1шт.

2

87685948

JOYSTICK

Assy

1шт.

3

85827471

HYDRAULIC VALVE

Assy

1шт.

4

84269982

PILOT VALVE

Assy, Serial Range: -C9006

1шт.

4

84551841R

REMAN-HYD VALVE

Reman Assy

1шт.

4

84551841C

CORE-VALVE HYD

Core Return Number

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

7

87437633

HYD TUBE

1шт.

8

87437635

HYD TUBE

1шт.

9

84203219

MODULE

1шт.

10

84551841

CONTROL VALVE

Assy, Start Serial: D9006

1шт.

Выбрано товаров: 0
