Запчасти Case 590SN (35.726.30[01]) - CONTROL - BACKHOE, WITH FOOT SWING (WITH EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS

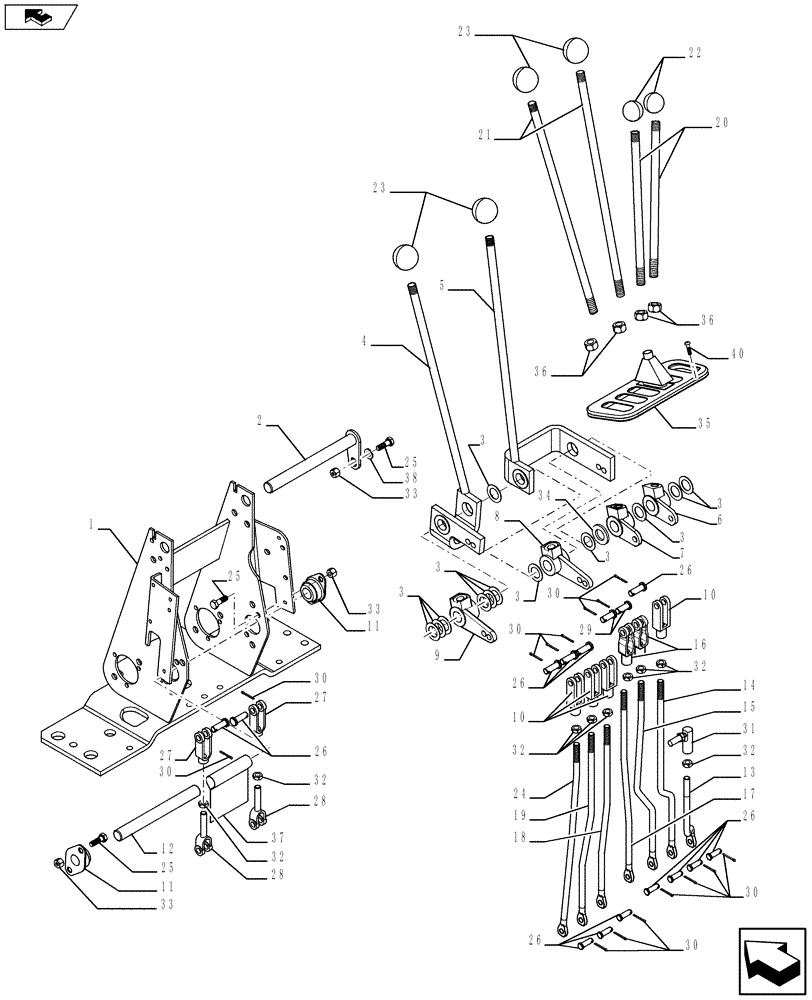

Схема запчастей Case 590SN - (35.726.30[01]) - CONTROL - BACKHOE, WITH FOOT SWING (WITH EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS
37
38
32
11
23
7
6
4
15
3
31
17
11
1
30
10
12
26
home
25
26
33
20
25
8
34
36
32
2
3
16
27
33
24
25
26
36
5
30
21
3
18
13
32
30
40
19
30
32
10
22
26
29
3
33
14
26
32
35
28
23
28
9
3
3
30
27
30
3

Артикул

Название

Примечание

Количество

1

87418516

SUPPORT

1шт.

2

87401203

SHAFT,198mm L

1шт.

3

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

13шт.

4

136267A1

LEVER

1шт.

5

136269A1

LEVER

1шт.

6

D150434

CRANK LEVER

1шт.

7

D150435

CRANK LEVER

1шт.

8

D150397

CRANK LEVER

1шт.

9

182006A1

LEVER

1шт.

10

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

4шт.

11

D139039

BEARING ASSY,19mm ID

2шт.

12

D148994

SHAFT,182.10mm L

1шт.

13

87422239

THREADED ROD,9.53mm D x 151mm L

1шт.

14

87422241

THREADED ROD,9.53mm D x 363mm L

1шт.

15

87422243

THREADED ROD,9.53mm D x 368mm L

1шт.

16

D150493

END

2шт.

17

87422245

THREADED ROD,9.53mm D x 368mm L

1шт.

18

87422247

THREADED ROD,9.53mm D x 352mm L

1шт.

19

87422249

THREADED ROD,9.53mm D x 368mm L

1шт.

20

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

2шт.

21

136263A1

ROD,12.7mm OD x 407mm L

2шт.

22

D59912

KNOB

2шт.

23

L54563

KNOB

4шт.

24

87446113

THREADED ROD

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

26

D149288

PIN,8.33mm OD x 30.66mm L

6шт.

27

D149262

CLEVIS,3/8-24"

2шт.

28

D150503

END

2шт.

29

427-6088

CLEVIS PIN,3/8" x 3/4"

2шт.

30

432-612

COTTER PIN,3/32" x 3/4"

15шт.

31

D149295

BALL JOINT,3/8"

1шт.

32

425-156

JAM NUT,Jam, 3/8"-24, G5

10шт.

33

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

35

D149867

BOOT

1шт.

36

425-118

NUT,1/2"-20, G5

4шт.

37

87444776

WARNING DECAL

1шт.

38

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

39

D149287

PIN,7.9mm OD x 26.72mm L

7шт.

40

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

Выбрано товаров: 40
