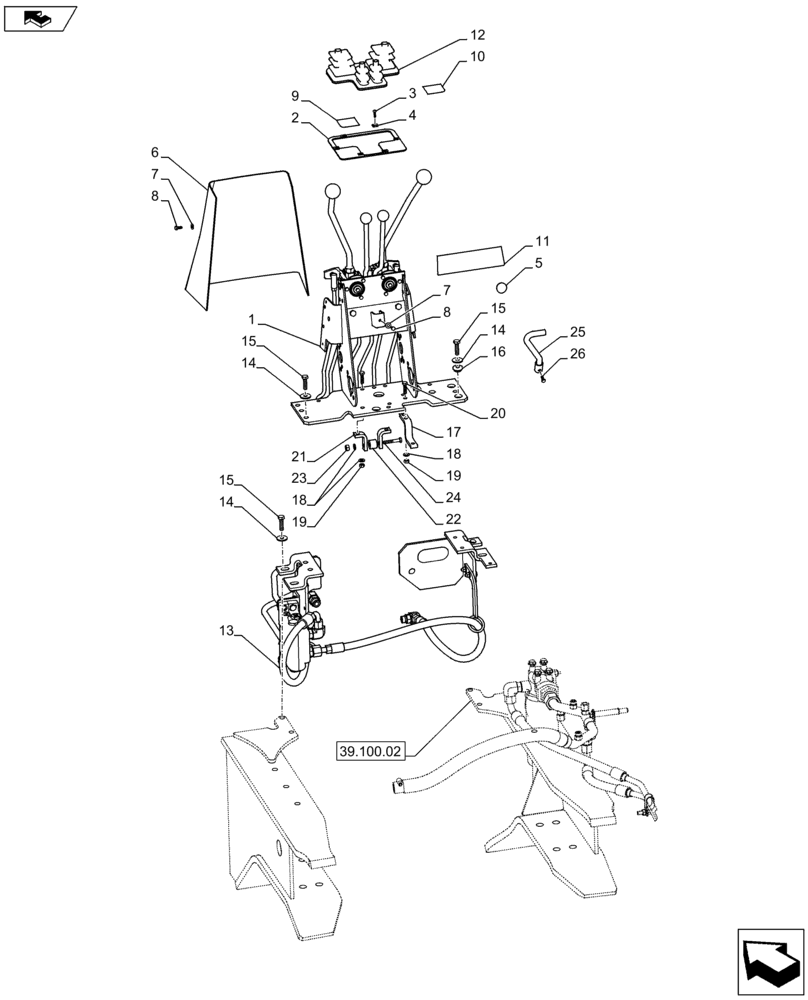

Запчасти Case 590SN (35.726.27) - VAR - 742369 - DAMPING VALVE, MOUNTING PARTS - LEVER ASSY & KNOB - W/O PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

87309482

LEVER

1шт.

2

136824A1

LARGE PLATE

PLATE, LARGE

1шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

6шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

5

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

6

390758A1

COVER

1шт.

7

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

8

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

5шт.

9

D149828

DECAL

1шт.

10

D149829

DECAL

1шт.

11

D149826

IMPORTANT DECAL

, Serial Range: -C7317

1шт.

11

47401717

WARNING DECAL

Warning Caution Backhoe , Start Serial: D7317

1шт.

12

D149868

BOOT

Used with Ref 2 (Not Shown)

1шт.

13

87480653

DAMPING VALVE

1шт.

14

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

8шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

16

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

2шт.

17

87449995

BRACKET

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

20

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

21

87449996

BRACKET

2шт.

22

86984547

GUIDE

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

24

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

25

87444149

ROD

1шт.

26

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

1шт.
