Запчасти Case 590SN (35.726.2502) - COUPLER VALVES FOR FOR PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

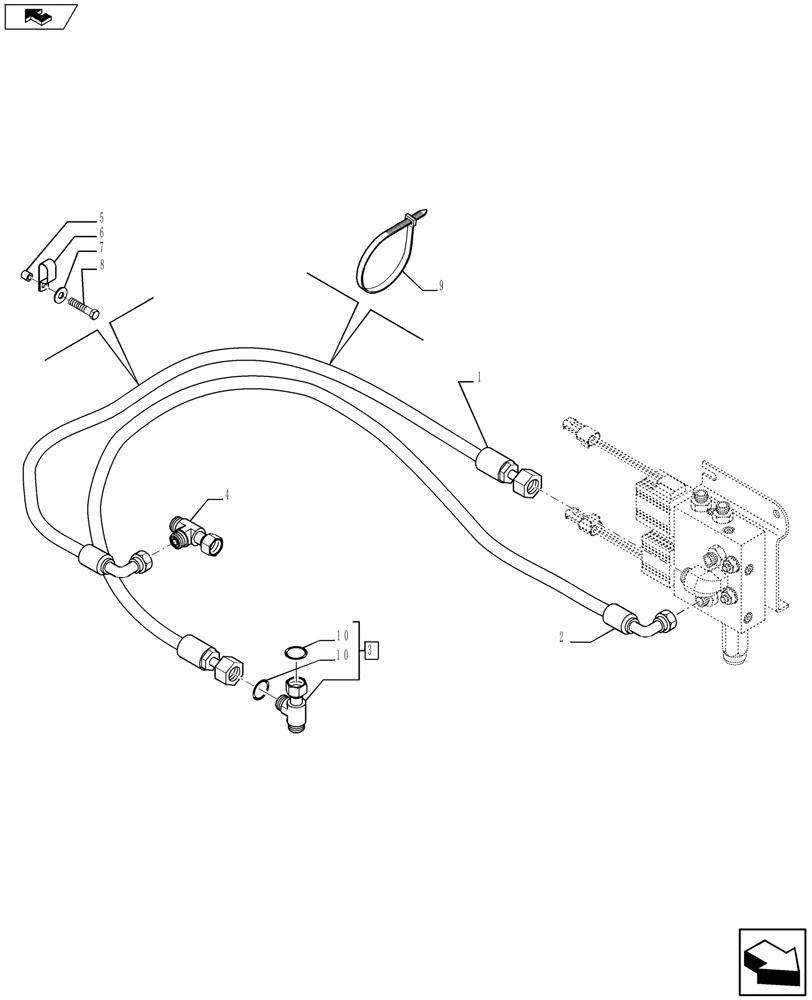

Схема запчастей Case 590SN - (35.726.2502) - COUPLER VALVES FOR FOR PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
home
6
4
1
a
b
3
a
b
8
5
7
10
2
b
9
a
10

Артикул

Название

Примечание

Количество

1

84258511

HOSE ASSY.,10mm ID, 1459mm L, SAE100R16 type S

1шт.

2

84258512

HOSE ASSY.,6.3mm ID, 1460mm L, SAE100R16 type S

1шт.

3

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

1шт.

4

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

5

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

1шт.

6

L302731

CLAMP,19mm D Clamping Pipes

1шт.

7

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

8

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

Выбрано товаров: 10
