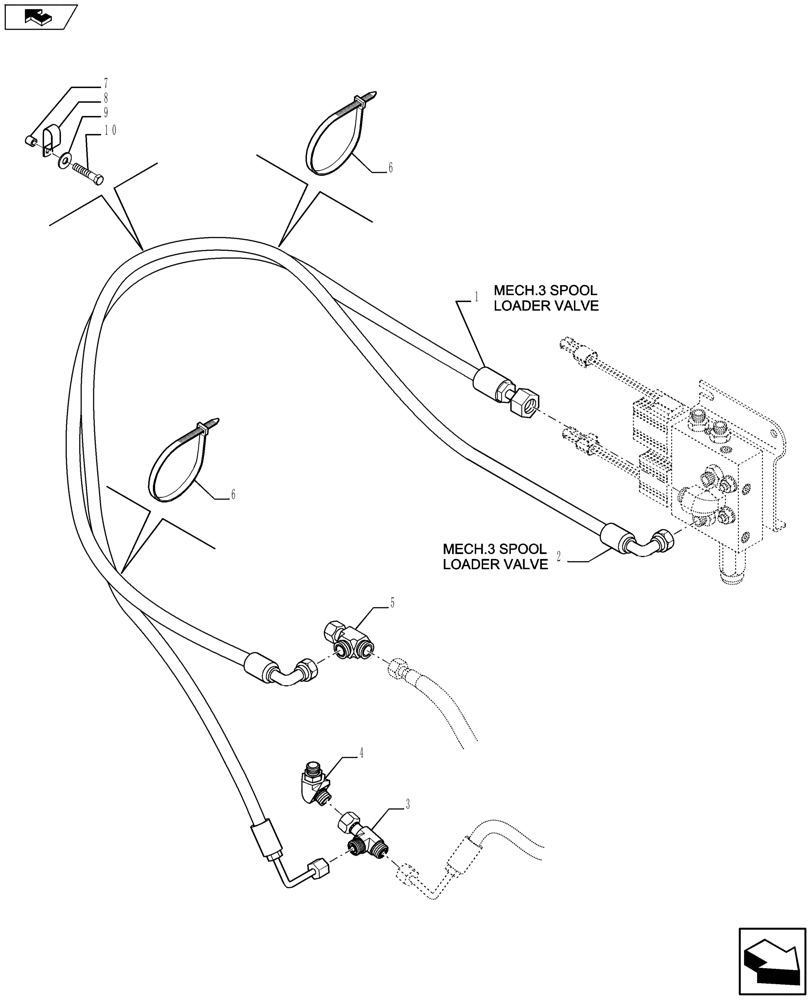

Запчасти Case 590SN (35.726.2501) - COUPLER VALVES FOR FOR MECH CONTROLS (35) - HYDRAULIC SYSTEMS

1

84298502

HOSE ASSY.,10mm ID x 1732mm L, SAE 100R16 Type S

1шт.

2

84329300

HOSE ASSY.,6.3mm ID x 1796mm L, SAE 100R16 Type S

1шт.

3

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

1шт.

4

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

7

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

1шт.

8

L302731

CLAMP,19mm D Clamping Pipes

1шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

10

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.
