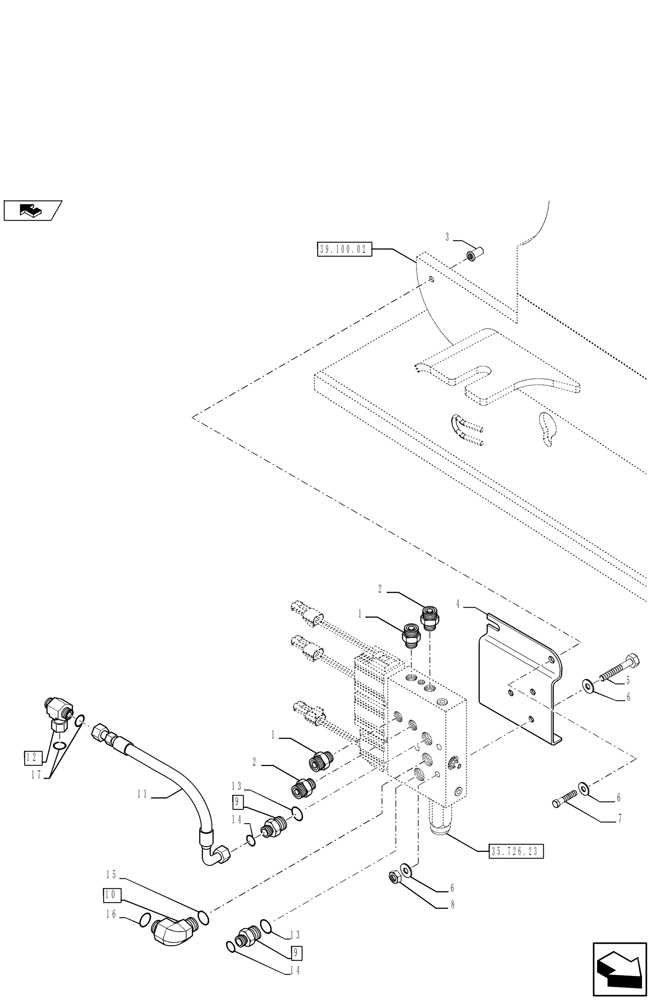

1
84261550
FITTING,11/16"-6 ORFS x 1/2"-5 ORB
2шт.
2
87681202
HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB
2шт.
3
87417721
THREADED INSERT,M10 x 1.5-6H x 29 L
2шт.
4
84275116
BRACKET
1шт.
5
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
2шт.
6
87655046
SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk
6шт.
7
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
2шт.
8
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
9
9993143
HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB
Assy, Incl 13 - 14
2шт.
10
9840543
90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS
Assy, Incl 15 - 16
1шт.
11
84514721
HOSE ASSY.,10mm ID x 360mm L
1шт.
12
86591334
TEE,11/16"-16 ORFS x 11/16"-16 Fem
Assy, Incl 17
1шт.
13
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
14
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
15
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
16
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
17
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
