Запчасти Case 590SN (35.726.2004[01]) - VAR - 423080 - HYDRAULICS - HEAVY LIFT (35) - HYDRAULIC SYSTEMS

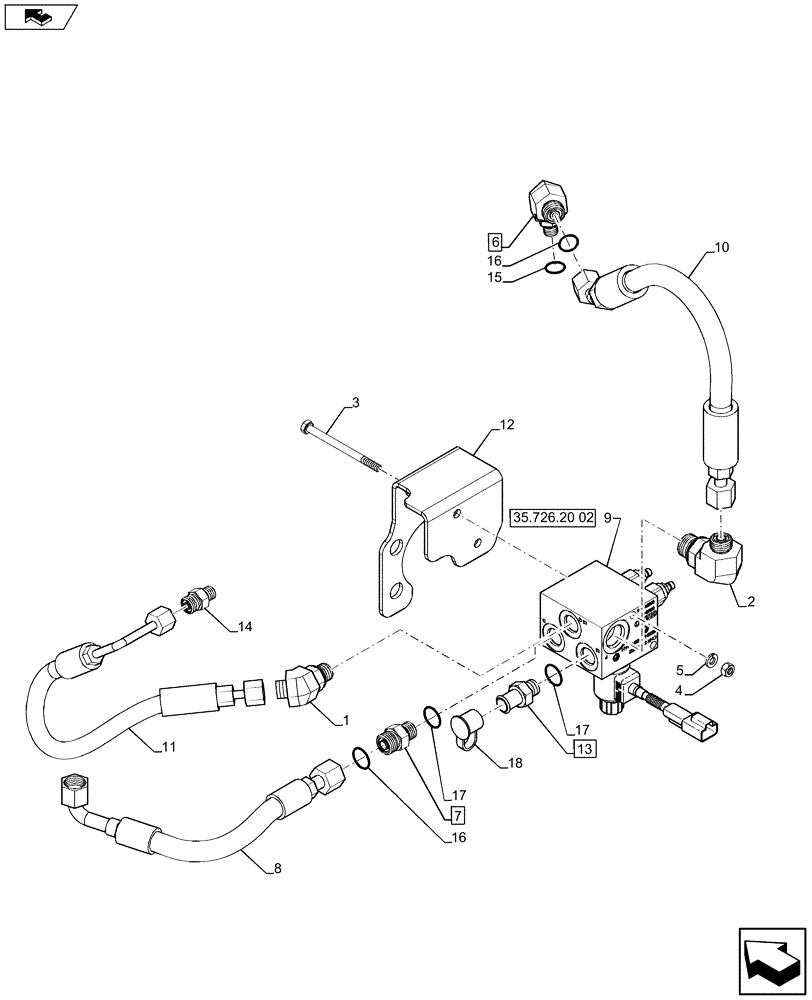

Схема запчастей Case 590SN - (35.726.2004[01]) - VAR - 423080 - HYDRAULICS - HEAVY LIFT (35) - HYDRAULIC SYSTEMS
10
9
13
home
15
18
7
17
3
2
6
4
12
11
16
1
14
35.726.20 02
5
17
16
8

Артикул

Название

Примечание

Количество

1

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

2

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

3

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

Assy, Incl 15 - 16

1шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 16 - 17

1шт.

8

84252236

HYD TUBE,10mm ID x 262mm L

1шт.

9

84527714

CONTROL VALVE

Assy, Heavy Lift

1шт.

10

84332151

HOSE ASSY.,10mm ID x 374mm L

1шт.

11

84332166

HOSE ASSY.,6.3mm ID x 372mm L

1шт.

12

84333112

BRACKET

1шт.

13

86596853

QUICK MALE COUPLING,9/16"-18

Assy, Incl 17

1шт.

14

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

15

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

H434163

DUST CAP

1шт.

Выбрано товаров: 18
