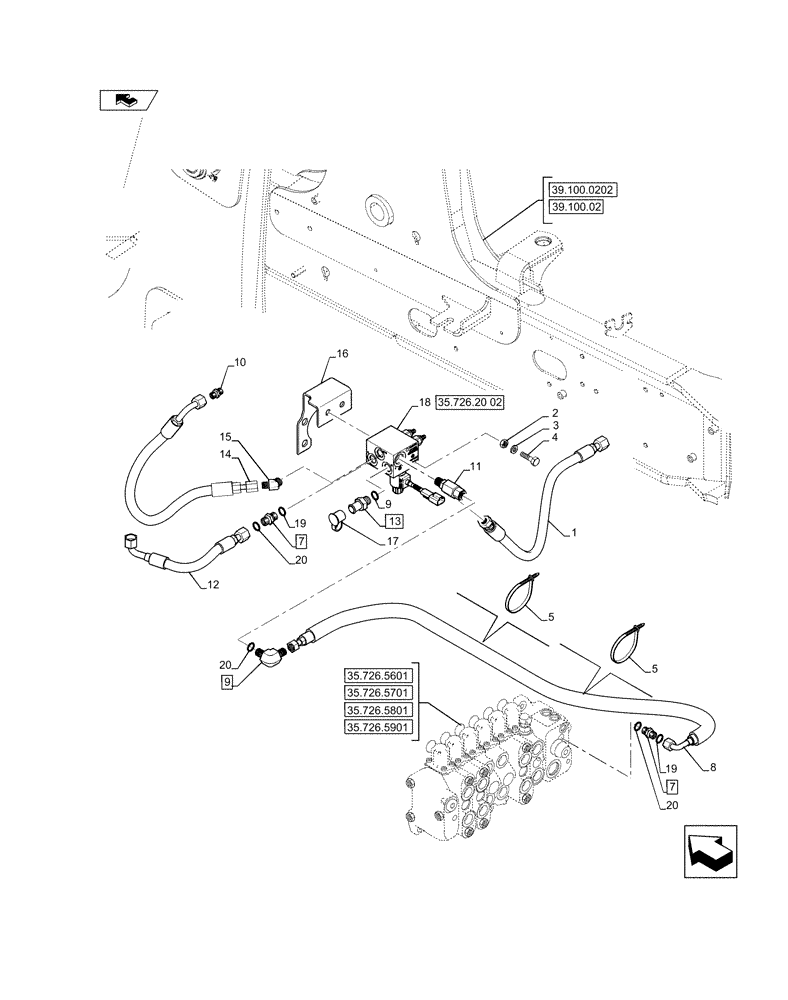

Запчасти Case 590SN (35.726.20[01]) - VAR - X20233X - HYDRAULICS - HEAVY LIFT (PILOT CONTROL) (35) - HYDRAULIC SYSTEMS

1

84498309

BOOT

1шт.

2

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

6

NS

NOT SERVICED

1шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 19 - 20

2шт.

8

84523972

HYDRAULIC HOSE,10mm ID, 1410mm L, SAE100R16 type S

1шт.

9

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Assy, Incl 20

1шт.

10

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

11

87305436

HYD CONNECTOR

1шт.

12

84252236

HYD TUBE,10mm ID x 262mm L

1шт.

13

86596853

QUICK MALE COUPLING,9/16"-18

Assy, Incl 19

1шт.

14

84332166

HOSE ASSY.,6.3mm ID x 372mm L

1шт.

15

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

16

84333112

BRACKET

1шт.

17

H434163

DUST CAP

1шт.

18

84527718

CONTROL VALVE

Assy, See 35.726.01 02

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
