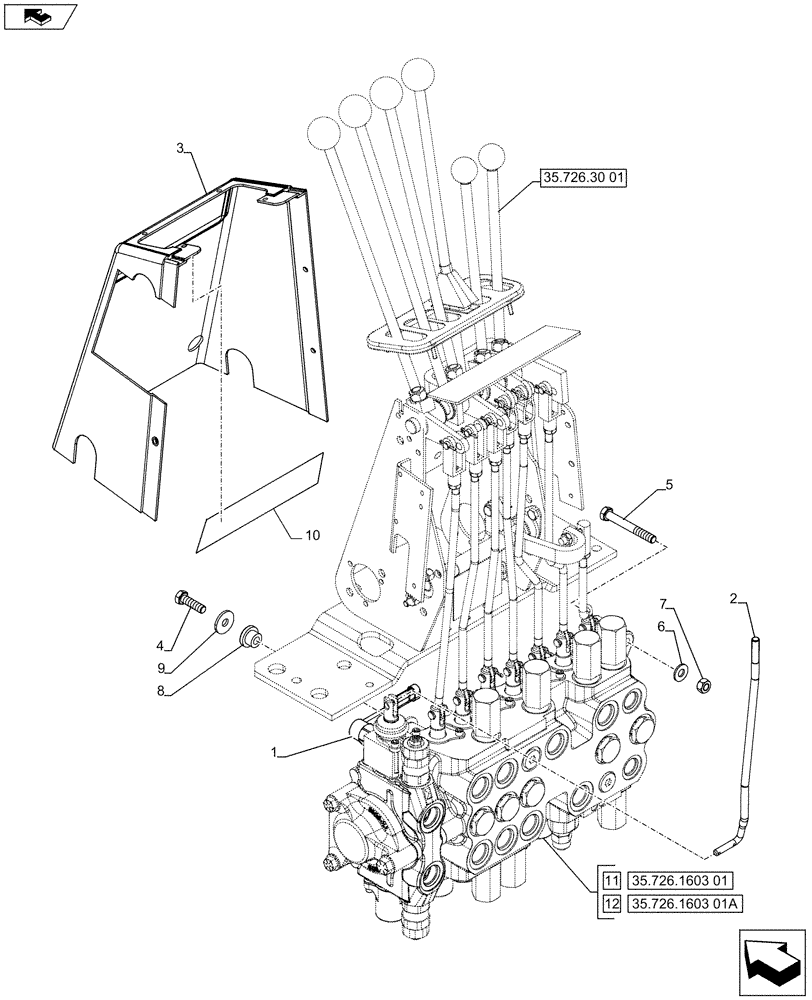

Запчасти Case 590SN (35.726.1909) - BACKHOE CONTROL VALVE, 8-SPOOL, MOUNTING PARTS, EXTENDABLE DIPPER, W/ FOOT SWING CONTROLS (35) - HYDRAULIC SYSTEMS

1

84128131

SOLENOID

1шт.

2

84398269

ADJUSTMENT ROD,9.525mm D x 315.2mm L

1шт.

3

87411083

COVER

See Fig 35.726.27 or 29 for Attaching Cover

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

5

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

9

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

10

D149825

DECAL

Upper; Extendahoe Control Pattern; With Foot Swing

1шт.

11

84273249

VALVE

ASSY, Serial Range: -C7373

1шт.

12

47578536

VALVE

ASSY, Start Serial: D7373

1шт.
