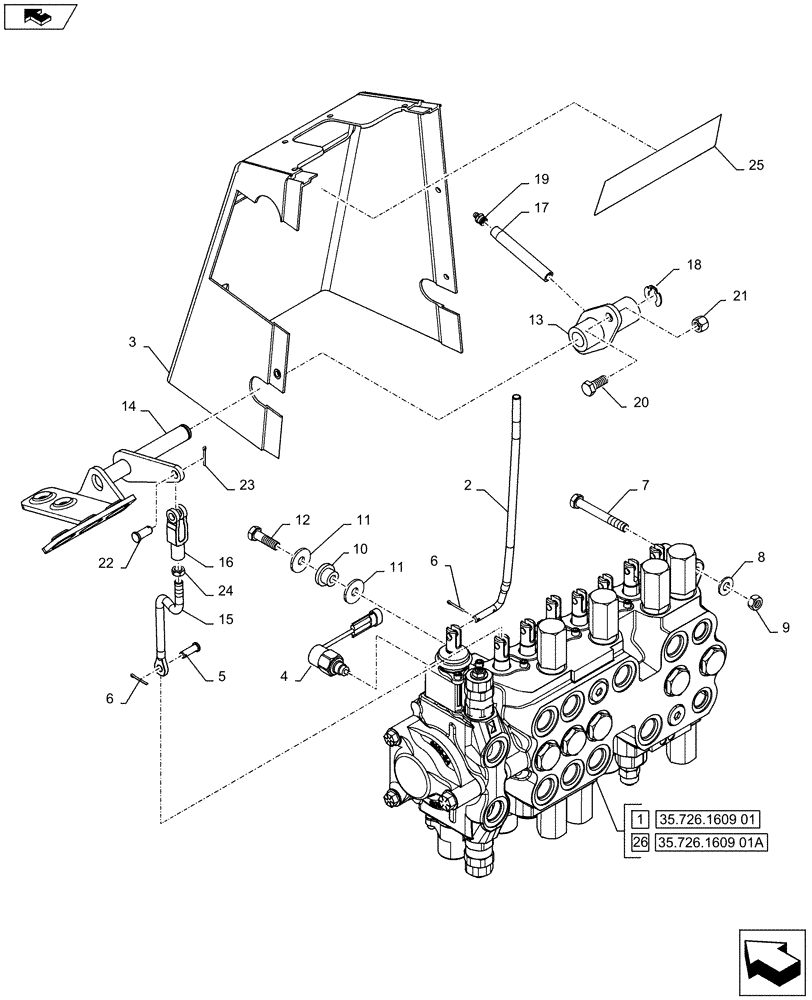

Запчасти Case 590SN (35.726.1908) - BACKHOE CONTROL VALVE, 8-SPOOL, MOUNTING PARTS, EXTENDABLE DIPPER, W/ TWO LEVER CONTROLS (35) - HYDRAULIC SYSTEMS

1

84273250

VALVE

Assy, Serial Range: -C7373

1шт.

2

84398269

ADJUSTMENT ROD,9.525mm D x 315.2mm L

1шт.

3

87411084

COVER

1шт.

4

84128131

SOLENOID

1шт.

5

D149287

PIN,7.9mm OD x 26.72mm L

7шт.

6

432-612

COTTER PIN,3/32" x 3/4"

7шт.

7

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

11

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

12

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

13

126918A1

SUPPORT

1шт.

14

179029A1

PEDAL

1шт.

15

87440058

THREADED ROD,9.53mm D x 148mm L

1шт.

16

D134900

CLEVIS,3/8-24"

1шт.

17

D150032

TUBE

1шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

427-6088

CLEVIS PIN,3/8" x 3/4"

1шт.

23

432-612

COTTER PIN,3/32" x 3/4"

1шт.

24

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

25

D149827

IMPORTANT DECAL

Caution; Extendahoe Backhoe Models With Hand Swing

1шт.

26

47578532

VALVE

Assy, Start Serial: D7373

1шт.
