Запчасти Case 590SN (35.726.1609[01]) - BACKHOE CONTROL VALVE, 8-SPOOL, COMPONENTS, W/ EXTENDABLE DIPPER, W/ 2 LEVER CONTROLS, W/ DOUBLE AUXILIARY HYDRAULICS - C7373 (35) - HYDRAULIC SYSTEMS

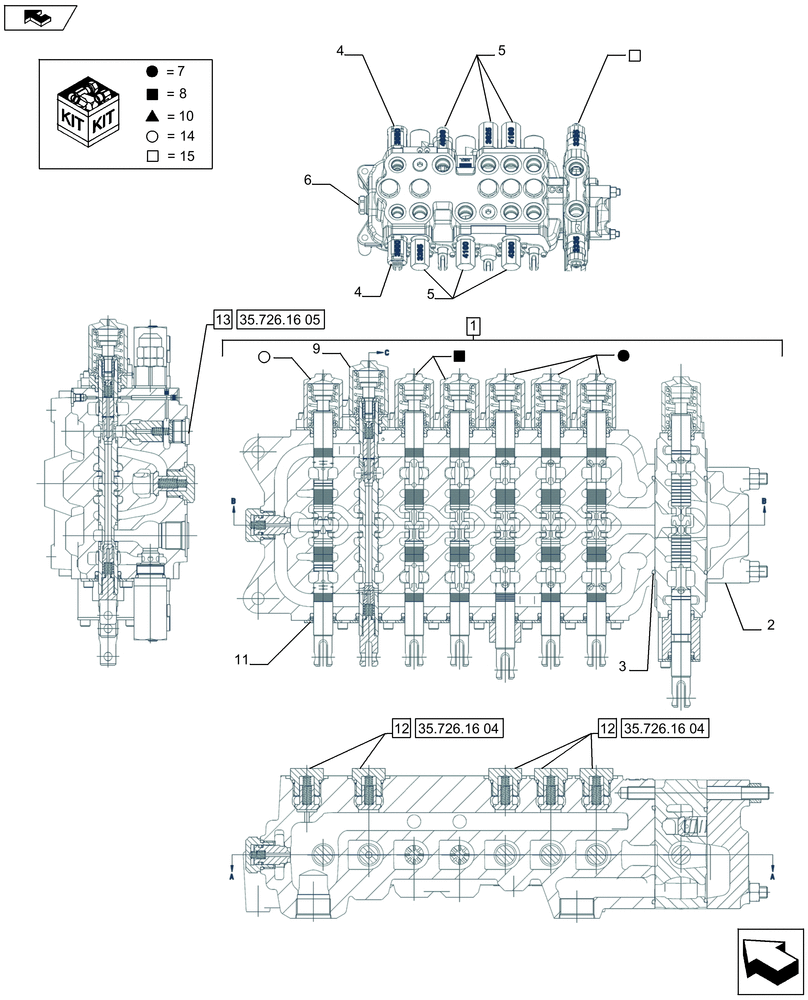

Схема запчастей Case 590SN - (35.726.1609[01]) - BACKHOE CONTROL VALVE, 8-SPOOL, COMPONENTS, W/ EXTENDABLE DIPPER, W/ 2 LEVER CONTROLS, W/ DOUBLE AUXILIARY HYDRAULICS - C7373 (35) - HYDRAULIC SYSTEMS
12
14
7
1
10
12
13
35.726.16 04
8
7
15
35.726.16 04
4
5
11
35.726.16 05
15
home
2
5
4
14
6
8
3
9

Артикул

Название

Примечание

Количество

1

84273250

VALVE

Assy, Incl 2 - 15

1шт.

2

87433030

OUTLET

1шт.

3

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

4

84296800

VALVE PRESSURE RELIE

2шт.

5

84296804

VALVE PRESSURE RELIE,230 Bar, Adjustable

6шт.

Set the Relief to the Setting of the One that is Being Replaced

1шт.

6

81868381

CHECK VALVE,1-1/16" - 12

1шт.

7

84296859

KIT

4шт.

8

84296826

SERVICE KIT

2шт.

9

84296862

KIT

1шт.

10

84296786

SEAL KIT

1шт.

11

84315193

SEAL

7шт.

12

87426238

VALVE, CHECK

Assy

5шт.

13

87428486

VALVE, CHECK

Assy

1шт.

14

84276556

SERVICE KIT

1шт.

15

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Not shown

2шт.

Выбрано товаров: 16
