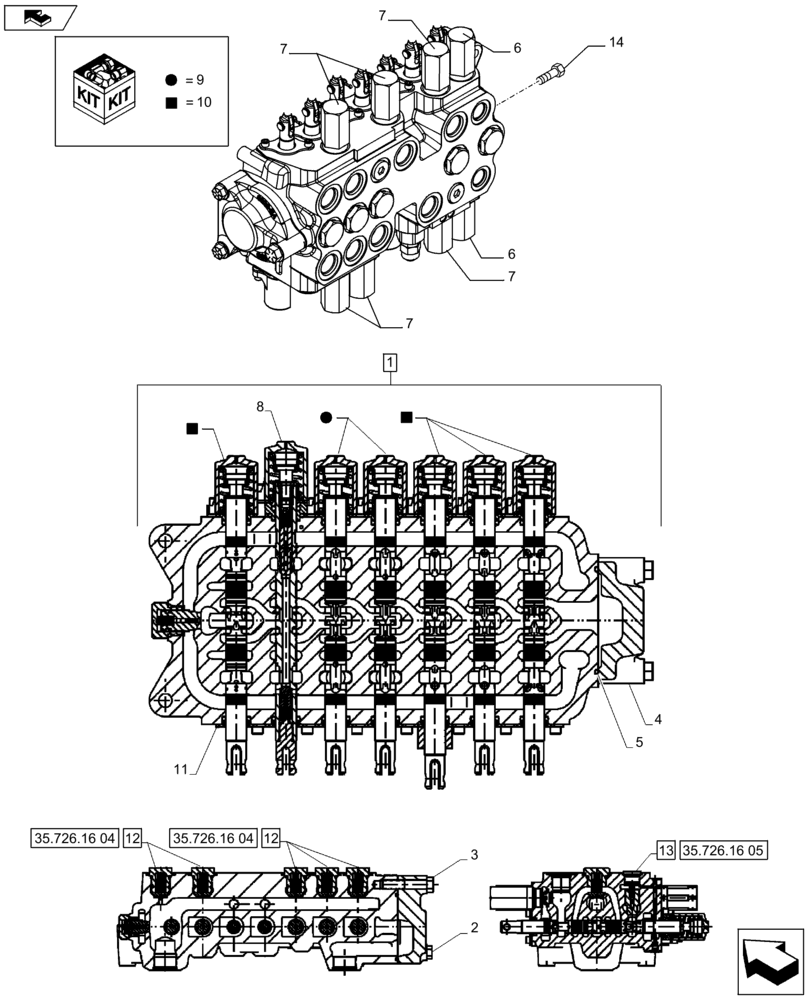

Запчасти Case 590SN (35.726.1604[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, COMPONENTS, W/ EXTENDABLE DIPPER, W/ 2 LEVER CONTROLS - C7373 (35) - HYDRAULIC SYSTEMS

1

84273243

VALVE

Assy, Incl 2 - 14

1шт.

2

87428491

SCREW,Hex

2шт.

3

87428492

SCREW,Hex

1шт.

4

87433030

OUTLET

1шт.

5

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

1шт.

6

84296800

VALVE PRESSURE RELIE

2шт.

7

84296804

VALVE PRESSURE RELIE,230 Bar, Adjustable

6шт.

Set the Relief to the Setting of the One that is Being Replaced

1шт.

8

84296862

KIT

1шт.

9

84296826

SERVICE KIT

2шт.

10

84296859

KIT

4шт.

11

84315193

SEAL

7шт.

12

87426238

VALVE, CHECK

Assy

5шт.

13

87428486

VALVE, CHECK

Assy

1шт.

14

81868381

CHECK VALVE,1-1/16" - 12

1шт.
