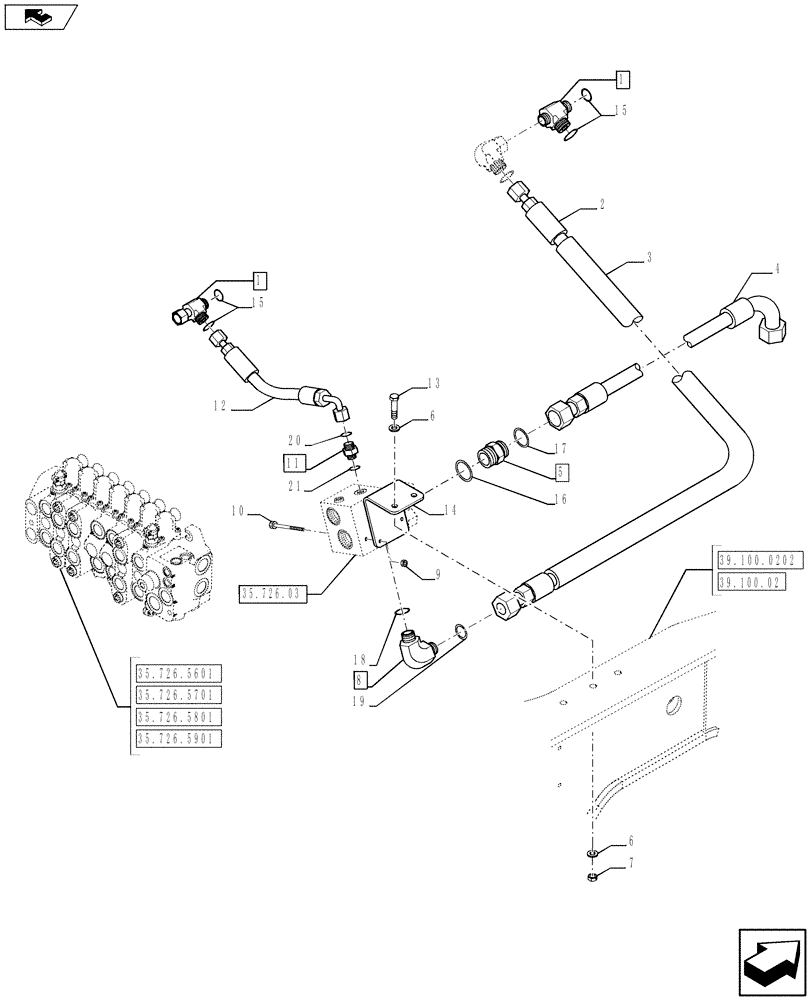

Запчасти Case 590SN (35.726.11) - VAR - 423084 - VALVE INSTALL - BACKHOE CONTROL, DUAL AUX (PILOT CONTROLS) GEAR PUMP ONLY (35) - HYDRAULIC SYSTEMS

1

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 15

2шт.

2

84523981

HYDRAULIC HOSE,9.53mm ID x 550mm L, SAE 100R16

1шт.

3

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

4

84275042

HOSE ASSY.,19mm ID x 411mm L

1шт.

5

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 16 - 17

1шт.

6

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

7

337475

NUT,M12, Cl 10

2шт.

8

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 18 - 19

1шт.

9

43362

NUT,M8 x 1.25, Cl 10

2шт.

10

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

11

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 20 - 21

1шт.

12

84259315

HOSE ASSY.,10mm ID x 288mm L

1шт.

13

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

14

84257782

BRACKET

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
