Запчасти Case 590SN (35.726.06[01]) - HYDRAULICS - PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

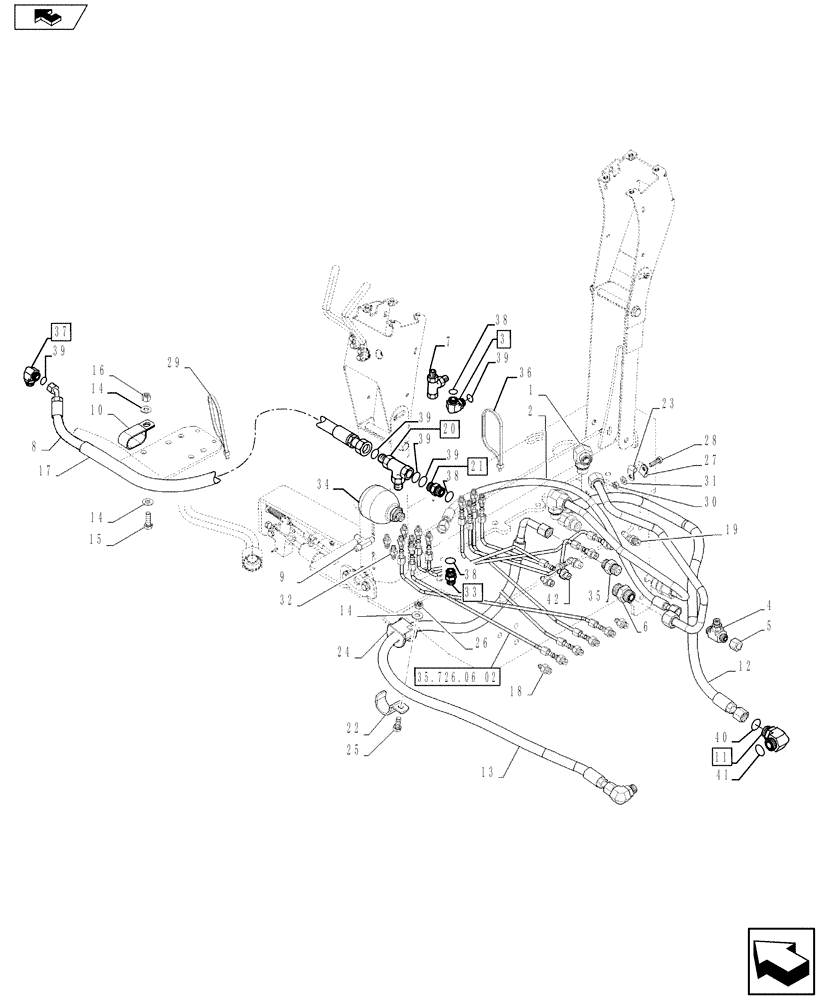

Схема запчастей Case 590SN - (35.726.06[01]) - HYDRAULICS - PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
18
40
27
42
4
22
19
32
15
28
25
1
13
12
21
37
20
39
23
14
home
38
14
39
14
34
33
24
38
35.726.06 02
9
39
31
11
39
41
39
26
2
5
30
3
38
36
35
8
6
16
17
10
29
7
37

Артикул

Название

Примечание

Количество

1

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

2

84405440

HYDRAULIC HOSE,6.3mm ID x 742mm L

1шт.

3

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 38 - 39

1шт.

4

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

1шт.

5

87331950

CAP ASSY.,Hex, 11/16"-16

2шт.

6

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

2шт.

7

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

8

84514724

HOSE ASSY.,10mm ID x 870mm L

1шт.

9

218-593

TEE,9/16"-18, 37 Degree

1шт.

10

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

11

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

Assy, Incl 40 - 41

1шт.

12

84328810

HOSE ASSY.,12.5mm ID x 899mm L

1шт.

13

84399174

HOSE ASSY.,10mm ID x 1285mm L

1шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

84249061

HOSE PROTECTION,19mm ID x 820mm L

1шт.

18

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

9шт.

19

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

2шт.

20

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 39

1шт.

21

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 38 - 39

1шт.

22

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

23

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

1шт.

24

D74182

GROMMET,3/4" ID x 1.46" L

1шт.

25

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

27

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

32

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

12шт.

33

86596853

QUICK MALE COUPLING,9/16"-18

Assy, Incl 38 - 39

1шт.

34

87425225

ACCUMULATOR,0.16L

1шт.

35

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

2шт.

36

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

37

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Assy, Incl 39

1шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

40

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

41

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

1шт.

Выбрано товаров: 42
