(35.726.03) - VAR - 423083 - VALVE ASSY - HAMMER AUXILIARY (WITH MECHANICAL CONTROLS)

Запчасти Case 590SN (35.726.03) - VAR - 423083 - VALVE ASSY - HAMMER AUXILIARY (WITH MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS

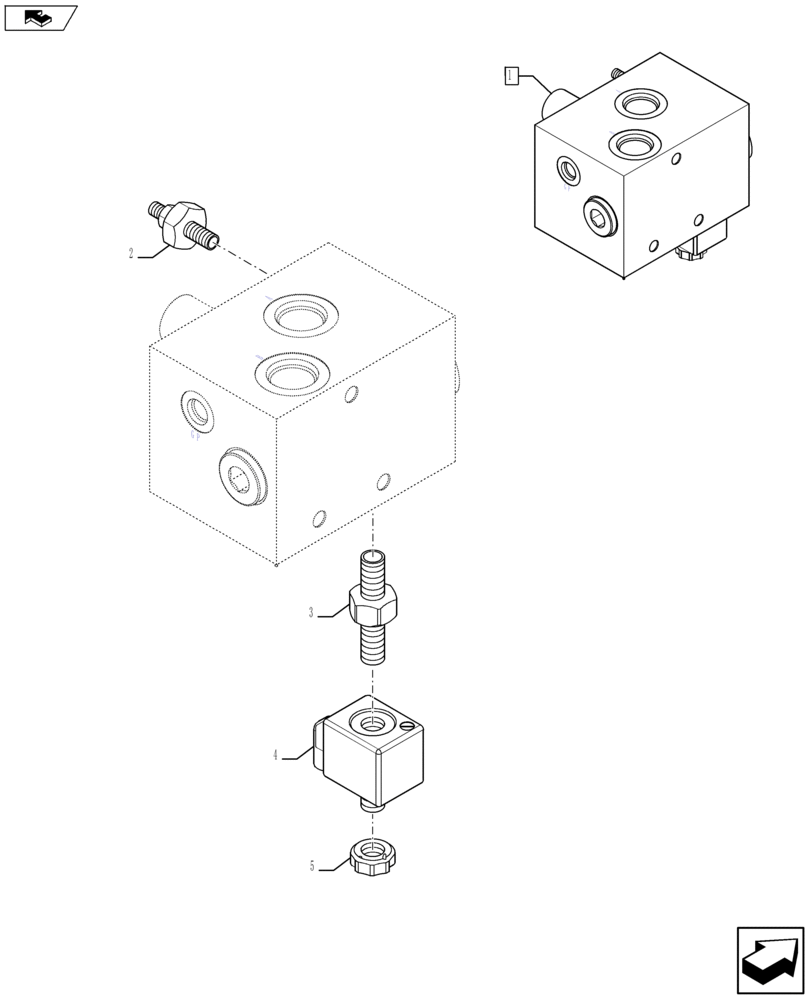

Схема запчастей Case 590SN - (35.726.03) - VAR - 423083 - VALVE ASSY - HAMMER AUXILIARY (WITH MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS
2
5
1
home
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84247109

VALVE

Assy, Incl 2 - 5

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.
