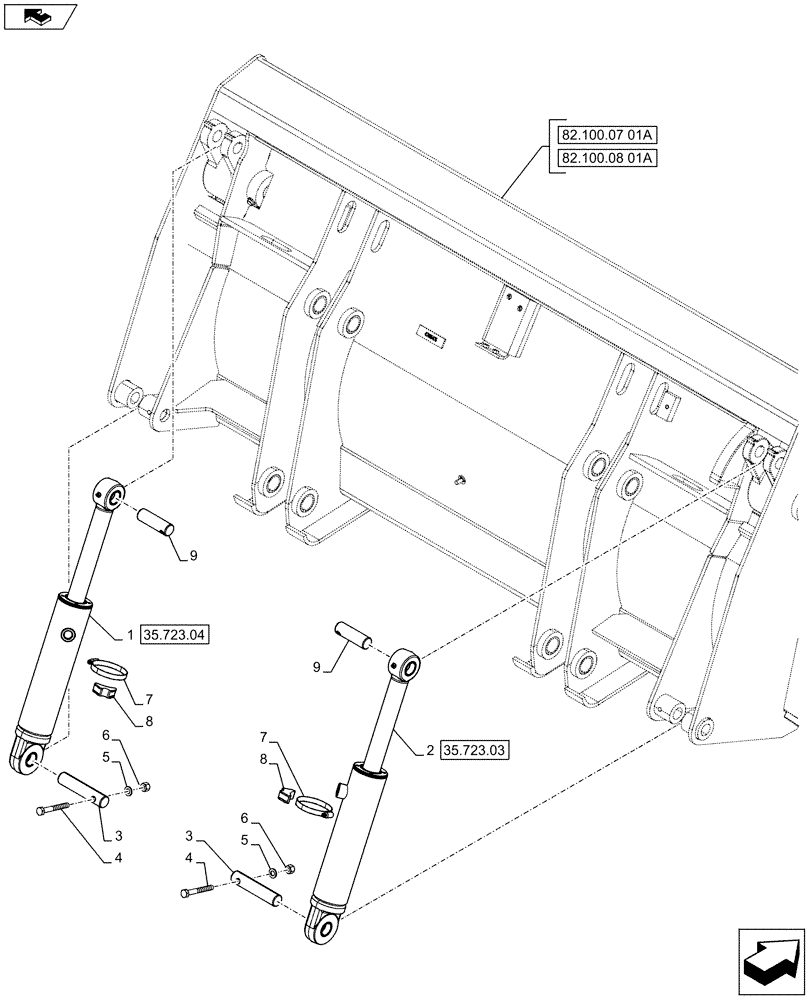

Запчасти Case 590SN (35.723.05[01A]) - VAR - 742433, 747863 - LOADER BUCKET, CYLINDER - D7384 - C7385 (35) - HYDRAULIC SYSTEMS

1

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

Clam LH 76.2, ASSY

1шт.

2

87455459

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

Clam RH 76.2, ASSY

1шт.

3

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

8

47468106

SUPPORT

2шт.

9

D51392

PIN,31.72mm OD x 101.6mm L

2шт.
