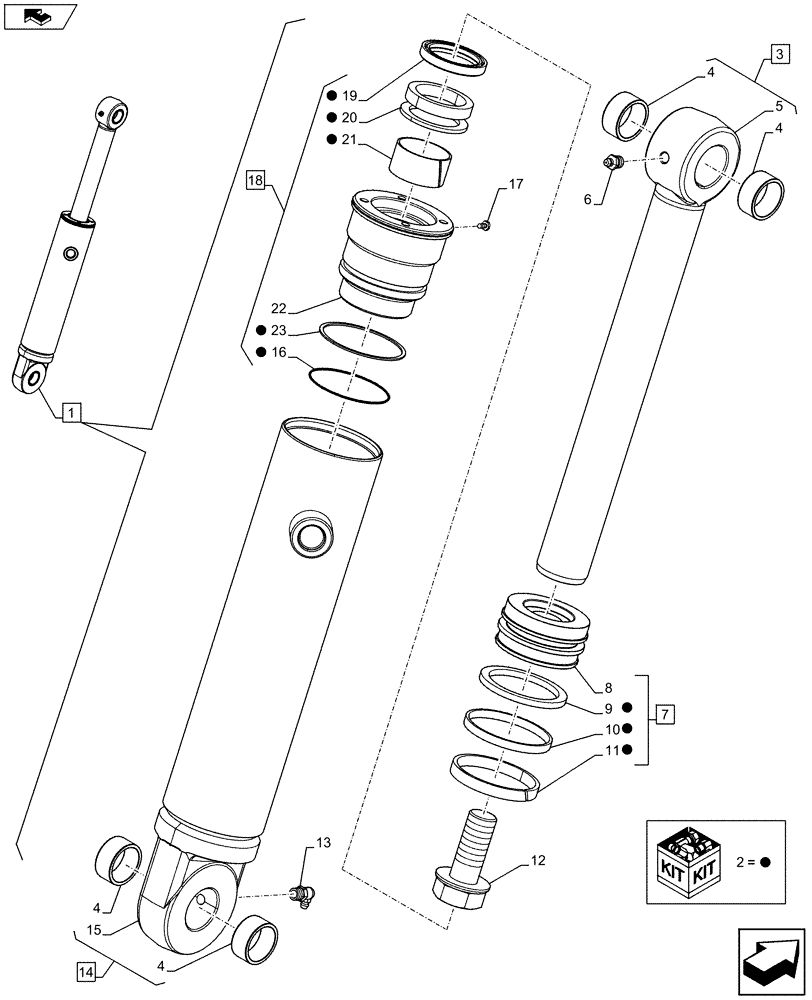

Запчасти Case 590SN (35.723.04) - VAR - 742433, 747863 - LOADER BUCKET, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

ASSY, Clam LH 76.2, Incl 2 - 23

1шт.

2

86982377

SEAL KIT

Repair, Incl 9 - 11, 16, 19 - 21, 23

1шт.

3

1346195C1

PISTON ROD

ASSY, Incl 4 (Qty 2), 5

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 3

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

7

1340797C1

PISTON ASSY.

ASSY, Incl 8 - 11

1шт.

8

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

1шт.

9

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

10

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

11

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

12

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

14

87454908

BARREL

ASSY, Incl 4 (Qty 2), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Incl in 14

1шт.

16

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

17

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

18

1542987C1

GLAND

ASSY, Incl 16, 19 - 23

1шт.

19

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

20

1542875C1

SEAL KIT,44.4mm Rod

1шт.

21

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

22

297281A1

GLAND

1шт.

23

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.
