Запчасти Case 590SN (35.703.0103) - STABILIZER CYLINDER, LH, COMPONENTS (35) - HYDRAULIC SYSTEMS

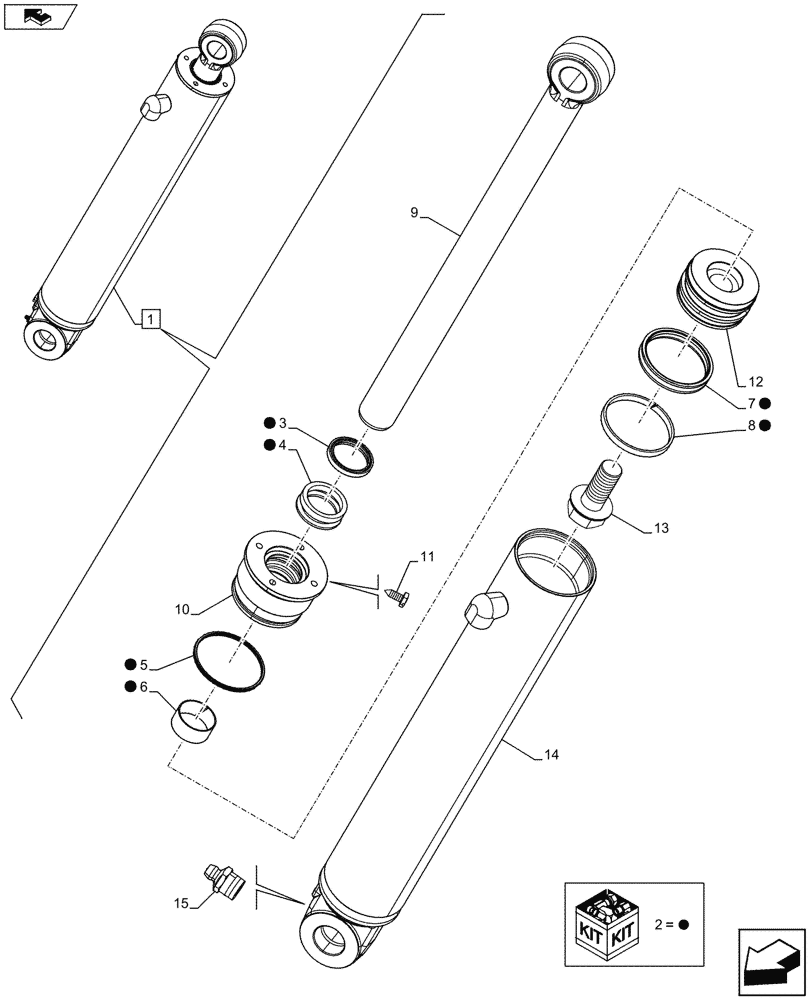

Схема запчастей Case 590SN - (35.703.0103) - STABILIZER CYLINDER, LH, COMPONENTS (35) - HYDRAULIC SYSTEMS
12
15
2
8
2
13
9
6
10
2
2
2
home
4
1
5
7
11
2
2
2
14
3

Артикул

Название

Примечание

Количество

1

84421607

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 133.4mm Bore, 518.1mm Stroke

Stabilizer LH , ASSY, Incl 2 - 15

1шт.

2

47997571

SEAL KIT

63.5mm Rod x 133.4mm Bore Seal Repair 133.4mm x 63.5mm, Incl 3 - 8

1шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

4

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

1шт.

5

87615486

SEAL,124.94mm ID x 132.1mm OD x 4.85mm Thk

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

7

87715790

SEAL,133.4mm OD

1шт.

8

444640A1

WEAR RING,Split, 127.05mm ID x 133.4mm OD x 19.05mm Thk

1шт.

9

84234101

ROD,63.5mm OD x 757.2mm L

1шт.

10

84234111

GLAND

1шт.

11

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

84234107

PISTON ROD/GLAND

1шт.

13

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

14

84234099

HYD TUBE,133.22mm Bore Dia

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

Выбрано товаров: 15
