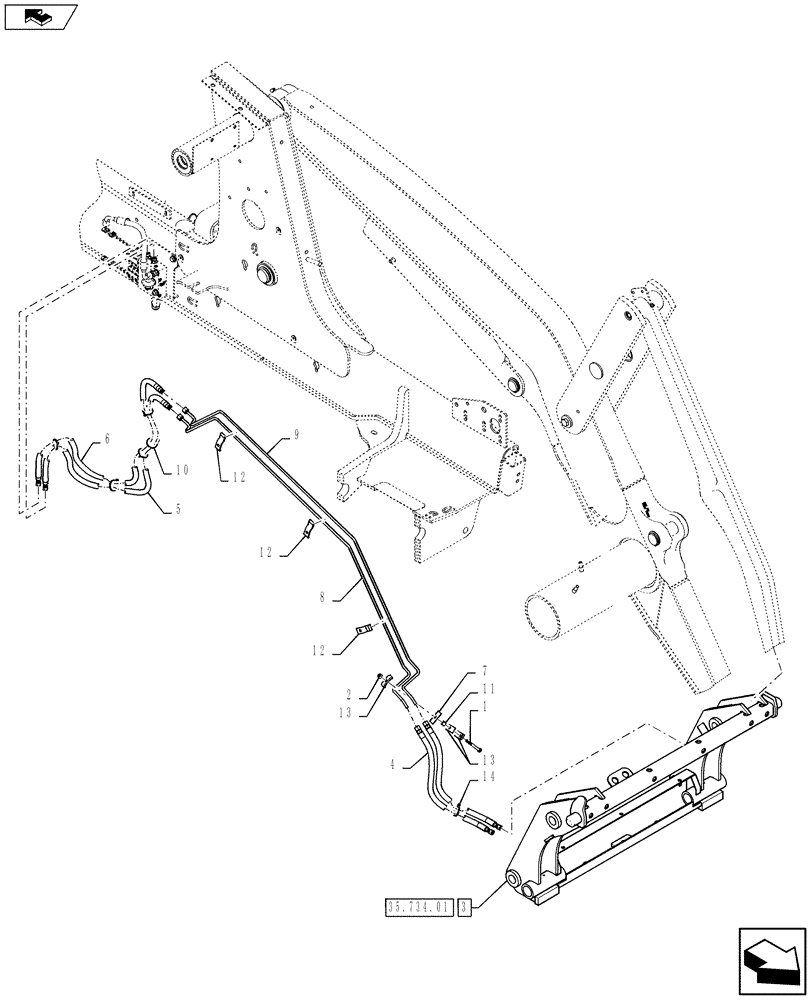

Запчасти Case 590SN (35.701.29) - VAR - 423049 - HYDRAULICS - COUPLER, LOADER TOOL QUICK (35) - HYDRAULIC SYSTEMS

1

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

2

412141

NUT,M10 x 1.5, Cl 8

1шт.

3

84265982

COUPLING

Assy

1шт.

4

84266292

HYDRAULIC HOSE,6.35mm ID x 740mm L, SAE 100R16

2шт.

5

84311873

HOSE,6.35mm ID x 1497mm L, SAE 100R16

1шт.

6

84337930

HOSE,6.35mm ID x 1497mm L, SAE 100R16

1шт.

7

84346489

PLATE

1шт.

8

84401877

HYD TUBE

1шт.

9

84401879

HYD TUBE

1шт.

10

86566989

CABLE TIE,208mm L

5шт.

11

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

12

302820A2

CLAMP

3шт.

13

D138055

CLAMP

3шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
