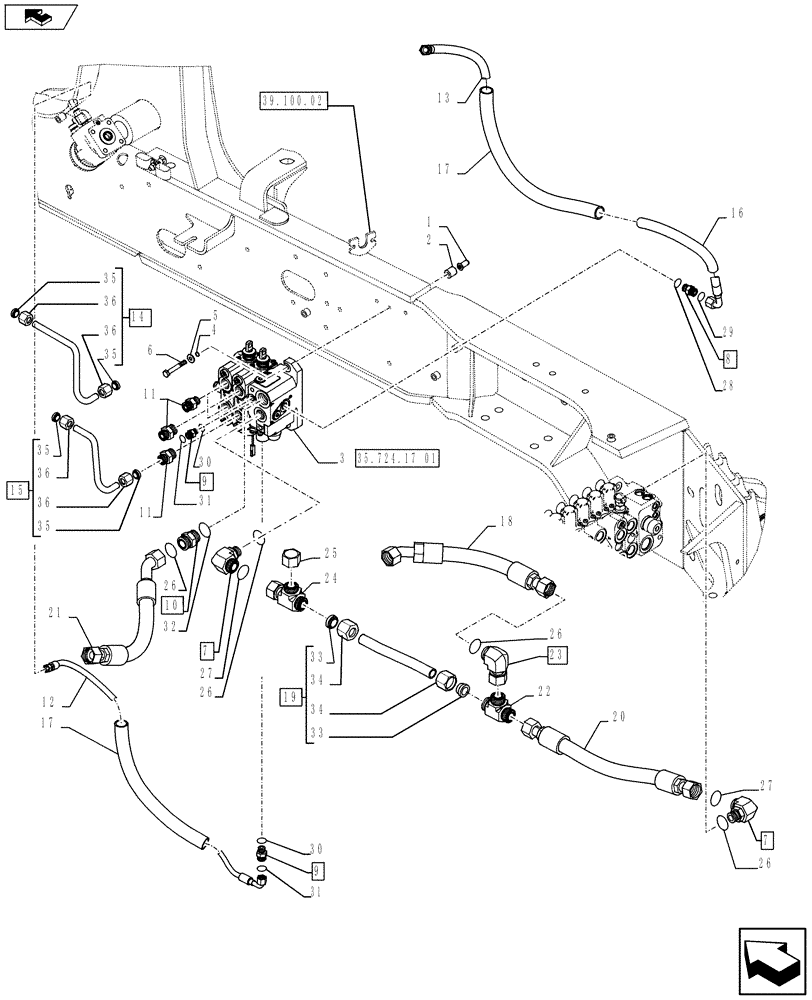

Запчасти Case 590SN (35.701.24) - HYDRAULICS - VALVE, LOADER CONTROL - 2 SPOOL VALVE PILOT CONTROL (35) - HYDRAULIC SYSTEMS

1

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

2

87585960

SPACER,11mm ID x 22mm OD x 22mm L

3шт.

3

84219975

VALVE

Assy

1шт.

4

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

3шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

6

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

7

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Assy, Incl 26 - 27

2шт.

8

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Assy, Incl 28 - 29

1шт.

9

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 30 - 31

2шт.

10

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Assy, Incl 26, 32

1шт.

11

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

4шт.

12

84284694

HOSE ASSY.,6.3mm ID x 1446mm L

1шт.

13

84358584

HOSE ASSY.,12.5mm ID x 1617mm L

1шт.

14

84293669

TUBE

Assy, Incl 35 - 36

1шт.

15

84293671

TUBE

Assy, Incl 35 - 36

1шт.

16

84336430

HOSE PROTECTION

1шт.

17

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

2шт.

18

84523983

HYDRAULIC HOSE,25mm ID x 458mm L

1шт.

19

84523969

HYD TUBE

Assy, Incl 33 - 34

1шт.

20

84523970

HYDRAULIC HOSE,25.4mm ID x 538mm L, SAE 100R12

1шт.

21

84523971

HYDRAULIC HOSE,25mm ID x 505mm L

1шт.

22

87016914

TEE,1 7/16"-12 ORFS

1шт.

23

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

Assy, Incl 23

1шт.

24

86641295

TEE,1-7/16"-12 ORFS to Swivel

1шт.

25

9847690

CAP,1-7/16" - 12 ORFS

1шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

33

203-913

SLEEVE,ORFS, 1" Tube, Braze

2шт.

34

703-915

2шт.

35

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

2шт.

36

703-903

TUBE NUT,1" - 14

2шт.
