Запчасти Case 590SN (35.701.1501) - VAR - 747776 - HYDRAULICS - VALVE, LOADER CONTROL - 3 SPOOL VALVE, W/O PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

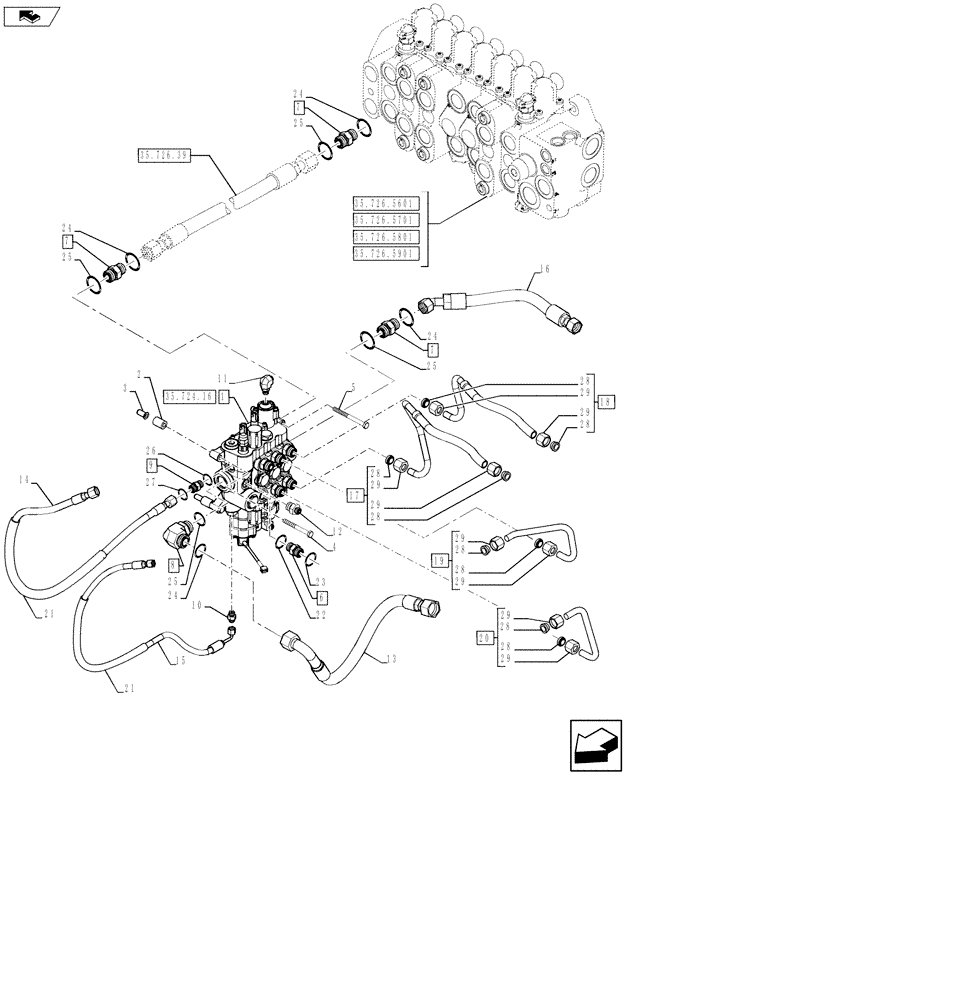

Схема запчастей Case 590SN - (35.701.1501) - VAR - 747776 - HYDRAULICS - VALVE, LOADER CONTROL - 3 SPOOL VALVE, W/O PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
2
15
35.726.5601
home
29
4
28
29
17
7
27
29
9
12
26
10
5
25
25
28
7
35.726.39
8
7
24
28
28
23
21
6
35.724.16
29
35.726.5901
29
35.726.5701
20
14
11
18
13
19
1
29
29
24
24
28
25
28
3
16
24
29
35.726.5801
28
25
28
21
22

Артикул

Название

Примечание

Количество

1

84218283

VALVE

Assy

1шт.

2

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

3

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

4

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

5

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

6

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Assy, Incl 22 - 23

6шт.

7

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Assy, Incl 24 - 25

3шт.

8

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

Assy, Incl 24 - 25

1шт.

9

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Assy, Incl 26 - 27

1шт.

10

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

11

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

2шт.

12

84139327

HYD CONNECTOR

1шт.

13

84245419

HOSE ASSY.,19.05mm ID x 678.4mm L, SAE 100R16

1шт.

14

84358585

HOSE ASSY.,12.5mm ID x 1200mm L

1шт.

15

84280705

HOSE ASSY.,6.3mm ID x 1275mm L

1шт.

16

84278155

HOSE ASSY.,25mm ID x 640mm L

1шт.

17

84293158

TUBE

Assy, Incl 28 - 29

1шт.

18

84293160

TUBE

Assy, Incl 28 - 29

1шт.

19

84293154

TUBE

Assy, Incl 30 - 31

1шт.

20

84293149

TUBE

Assy, Incl 30 - 31

1шт.

21

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

2шт.

22

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

2шт.

29

703-903

TUBE NUT,1" - 14

2шт.

30

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

1шт.

31

703-903

TUBE NUT,1" - 14

1шт.

Выбрано товаров: 31
