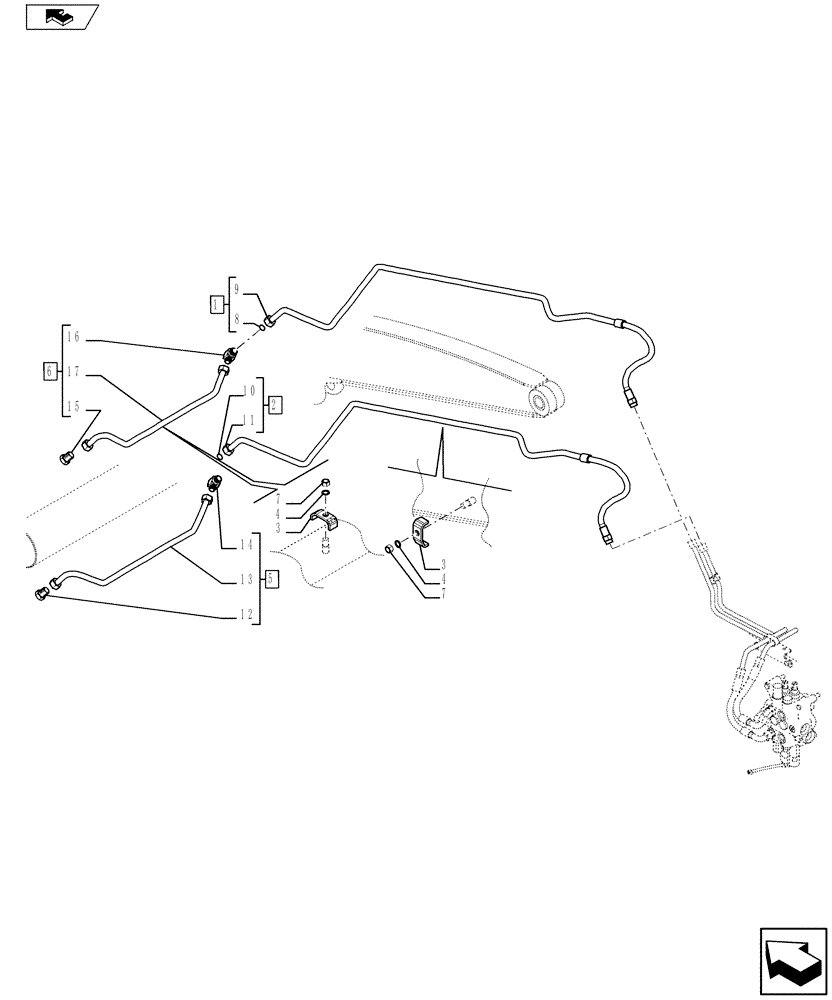

Запчасти Case 590SN (35.701.14) - HYDRAULICS - LOADER (35) - HYDRAULIC SYSTEMS

1

84297406

HYD TUBE

Loader Arm Port B, Assy, Incl 8 - 9

1шт.

2

84297407

HYD TUBE

Loader Arm Port B, Assy, Incl 10 - 11

1шт.

3

D138055

CLAMP

5шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

5шт.

5

84240490

TUBE

Loader Cross Port A, Assy, Incl 12 - 14

1шт.

6

84240497

TUBE

Loader Cross Port B, Assy, Incl 15 - 17

1шт.

7

86500689

NUT,M10 x 1.5, Cl 10

5шт.

8

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

1шт.

9

703-903

TUBE NUT,1" - 14

1шт.

10

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

1шт.

11

703-903

TUBE NUT,1" - 14

1шт.

12

84254679

TEE,5/8" ORFS x 5/8" ORB

1шт.

13

NSS

NOT SOLD SEPARAT

Tube, Port A, Incl in 5

1шт.

14

703-103

HYD CONNECTOR,1"-14 ORFS x 5/8" Tube, Braze

1шт.

15

84254679

TEE,5/8" ORFS x 5/8" ORB

1шт.

16

703-103

HYD CONNECTOR,1"-14 ORFS x 5/8" Tube, Braze

1шт.

17

NSS

NOT SOLD SEPARAT

Tube, Port B, Incl in 6

1шт.
