(35.701.1302) - HYDRAULICS - LOADER LIFT

Запчасти Case 590SN (35.701.1302) - HYDRAULICS - LOADER LIFT (35) - HYDRAULIC SYSTEMS

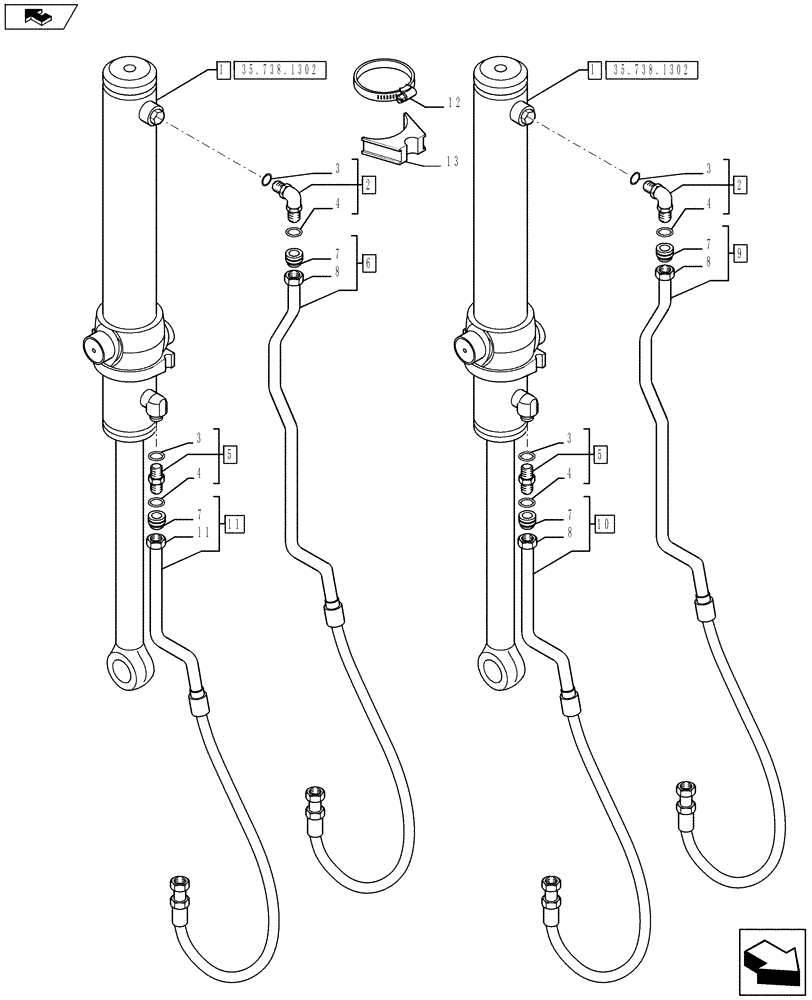

Схема запчастей Case 590SN - (35.701.1302) - HYDRAULICS - LOADER LIFT (35) - HYDRAULIC SYSTEMS
5
6
35.738.1302
7
2
10
3
1
35.738.1302
4
1
5
4
4
8
home
4
8
9
7
7
3
11
8
11
13
7
12
3
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421602

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 516.5mm Stroke

Assy

2шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl. 2 - 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl. 2 - 3

2шт.

6

84399689

TUBE

Assy, Incl 7 - 8

1шт.

7

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

1шт.

8

703-903

TUBE NUT,1" - 14

1шт.

9

84399671

TUBE

Assy, Incl 7 - 8

1шт.

10

84307497

HYD TUBE

Assy, Incl 7 - 8

1шт.

11

84307492

HYD TUBE

Assy, Incl 7 - 8

1шт.

12

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

13

L79937

SADDLE

2шт.
