(35.701.1102) - HYDRAULICS - LOADER LIFT CYLINDER

Запчасти Case 590SN (35.701.1102) - HYDRAULICS - LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

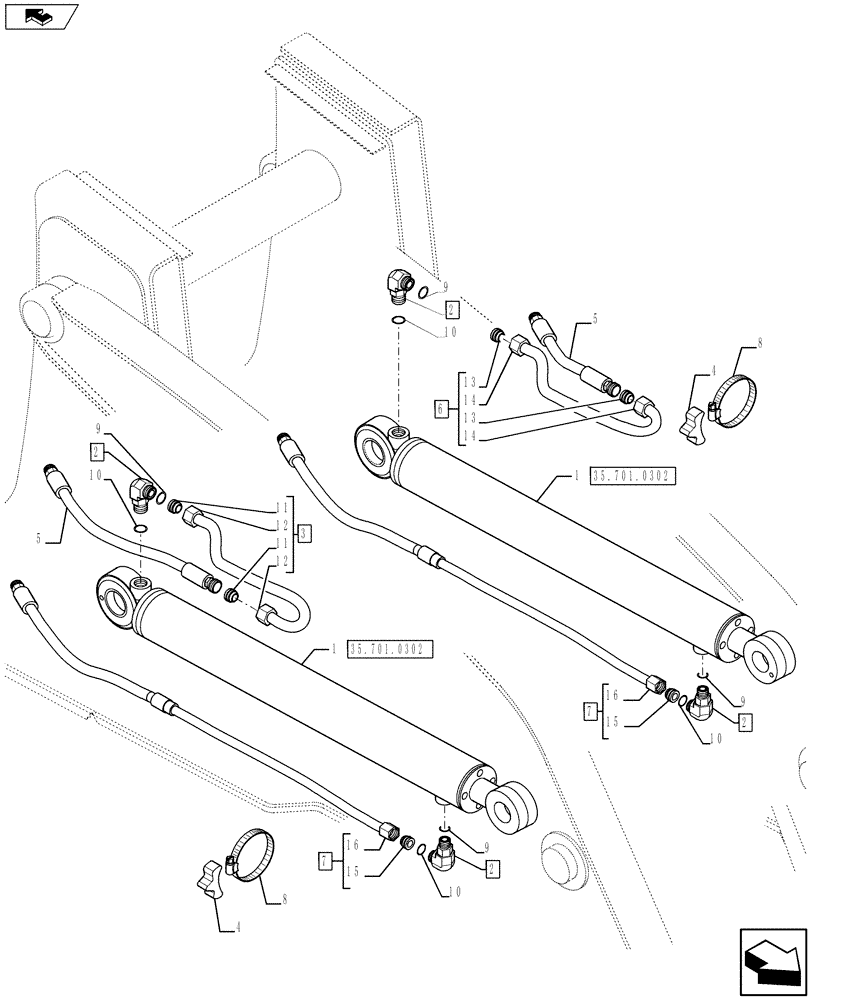

Схема запчастей Case 590SN - (35.701.1102) - HYDRAULICS - LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
15
11
5
5
2
8
15
1
7
10
10
13
8
10
6
35.701.0302
16
35.701.0302
11
14
4
9
9
10
13
9
3
2
home
2
7
16
2
9
14
4
12
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421599

LIFT CYLINDER,Double Acting, 47.6mm Rod, 740mm Stroke

Assy

2шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl 9 - 10

4шт.

3

84295697

HYD TUBE

Assy, Incl 11 - 12

2шт.

4

84296627

SECURING STRAP

2шт.

5

84351615

HOSE ASSY.,12.5mm ID x 526mm L

2шт.

6

84295087

HYD TUBE

Assy, Incl 13 - 14

1шт.

7

84296008

HYD TUBE

Assy, Incl 15 - 16

1шт.

8

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

1шт.

12

703-903

TUBE NUT,1" - 14

1шт.

13

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

2шт.

14

703-903

TUBE NUT,1" - 14

2шт.

15

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

2шт.

16

703-903

TUBE NUT,1" - 14

2шт.
