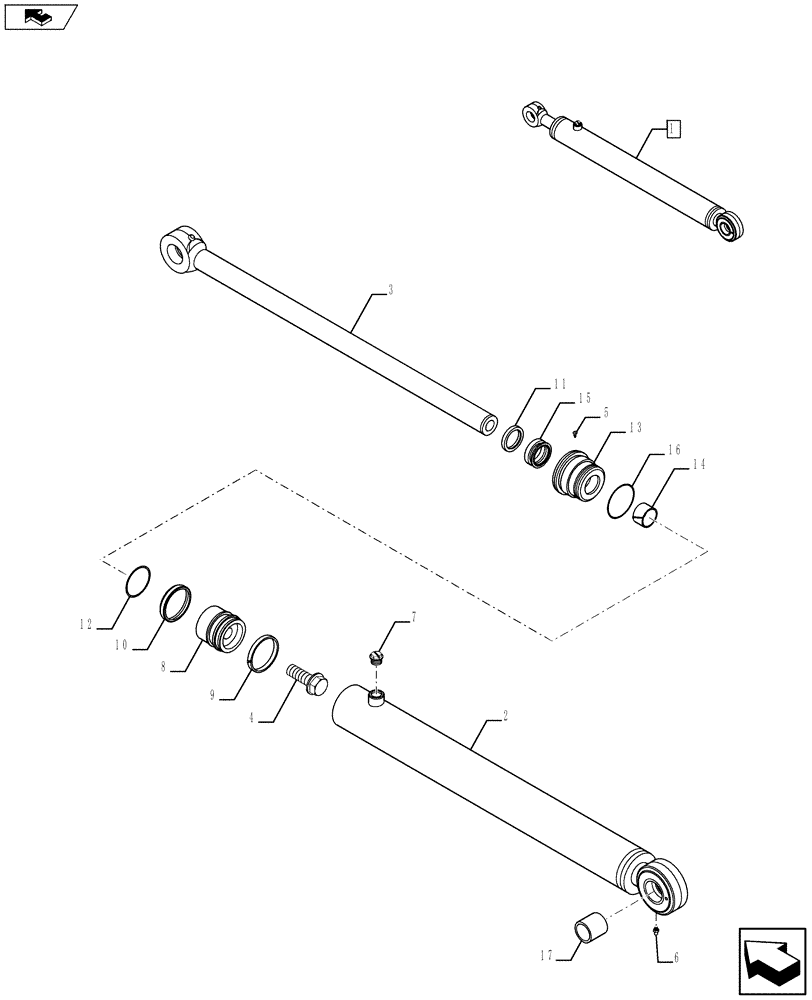

Запчасти Case 590SN (35.701.0302) - CYLINDER - LOADER LIFT (35) - HYDRAULIC SYSTEMS

1

84421599

LIFT CYLINDER,Double Acting, 47.6mm Rod, 740mm Stroke

Assy

1шт.

2

84238629

TUBE,88.9mm Bore Dia

1шт.

3

84238632

ROD,47.6mm OD x 972.8mm L

1шт.

4

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

8

84238638

PISTON

1шт.

9

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

10

87715783

SEAL,76.45mm ID x 88.9mm OD

1шт.

11

G103481

WIPER

1шт.

12

238799A1

SEALING RING,Locking, 80.65mm ID x 88.77mm OD x 4.74mm Thk

1шт.

13

84238636

GLAND

1шт.

14

G103482

BEARING,1.85mm ID x 47.75mm OD x 25.15 W

1шт.

15

84212408

SEAL PACKAGE

1шт.

16

84130482

SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk

1шт.

17

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

2шт.
