Запчасти Case 590SN (35.701.01[01]) - VAR - 747864 - HYDRAULICS - LOADER 4 IN 1 - 3 SPOOL VALVE PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

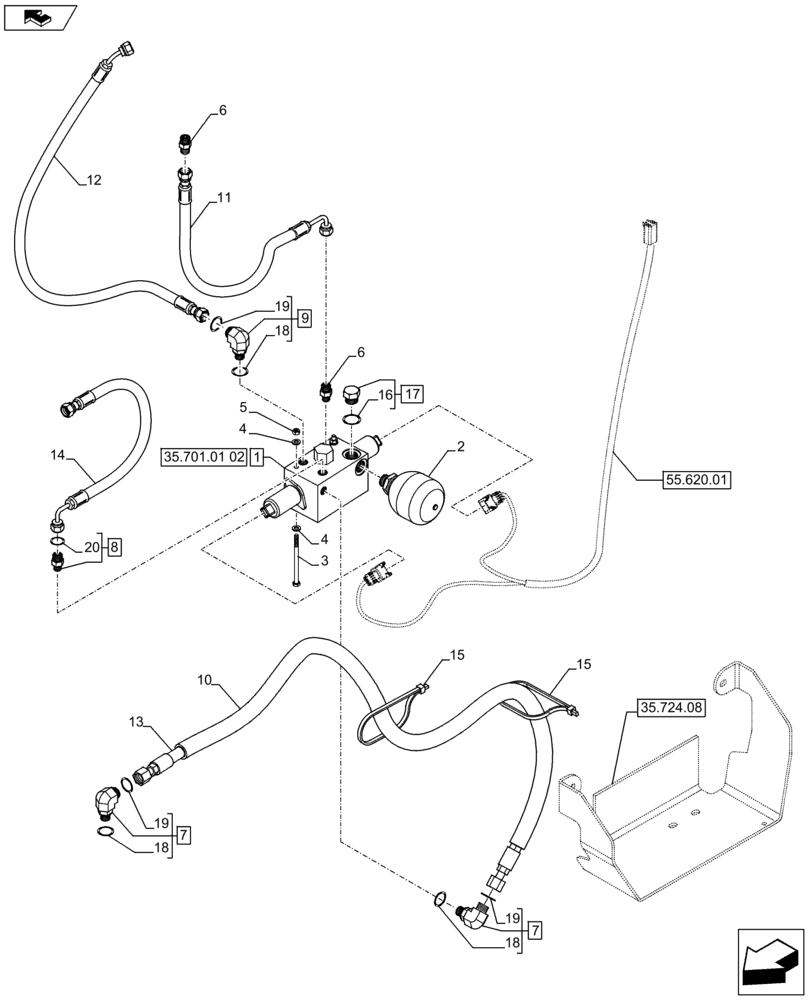

Схема запчастей Case 590SN - (35.701.01[01]) - VAR - 747864 - HYDRAULICS - LOADER 4 IN 1 - 3 SPOOL VALVE PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
15
6
7
19
5
14
4
6
10
55.620.01
8
4
17
3
35.724.08
35.701.01 02
18
19
19
15
11
1
12
20
home
18
18
2
13
9
7
16

Артикул

Название

Примечание

Количество

1

87566480

VALVE

Assy

1шт.

2

87425225

ACCUMULATOR,0.16L

1шт.

3

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

4

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 18 - 19

2шт.

8

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Assy, Incl 20

1шт.

9

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 18 - 19

1шт.

10

84284222

GUARD,19mm ID x 1140mm L

1шт.

11

84255908

HOSE ASSY.,6.3mm ID x 444mm L

1шт.

12

84255916

HOSE ASSY.,6.3mm ID x 343mm L

1шт.

13

84255991

HOSE ASSY.,10mm ID x 1283mm L

1шт.

14

84255924

HOSE ASSY.,6.3mm ID x 573mm L

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

Assy, Incl 16

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 20
