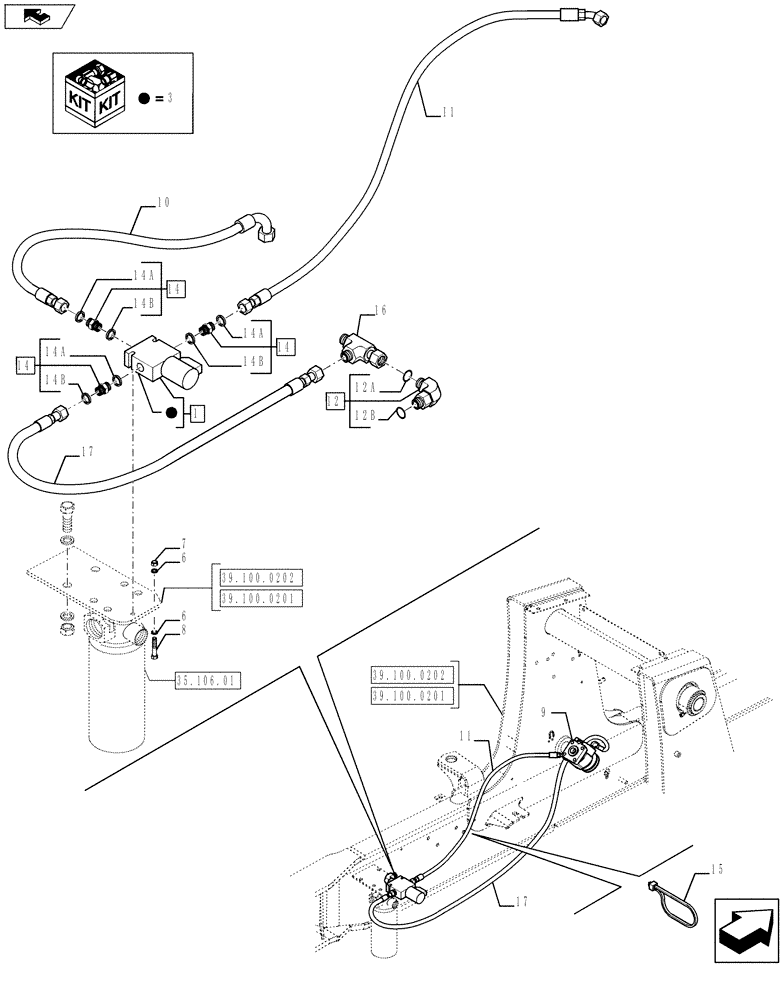

Запчасти Case 590SN (35.432.0102) - VAR - 423011 - CONFORT STEERING (35) - HYDRAULIC SYSTEMS

1

87382811

SOLENOID VALVE

Assy, Incl 2 - 5

1шт.

2

87348571

NUT,Hex, 1/2" - 20, RH

Not shown

1шт.

3

329483A1

SEAL KIT

1шт.

4

87613159

SOLENOID VALVE

Not shown

1шт.

5

87613161

SOLENOID,12V, 1.36A

Not shown

1шт.

6

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

7

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

87665116

STEERING VALVE

1шт.

10

84514720

HOSE ASSY.,10mm ID x 422mm L

1шт.

11

84251296

HOSE ASSY.,6.3mm ID x 1250mm L

1шт.

12

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

Assy, Incl 13 - 14

1шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

16

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

17

84252231

HOSE ASSY.,10mm ID x 1866mm L

1шт.

18

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 19 - 20

3шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
