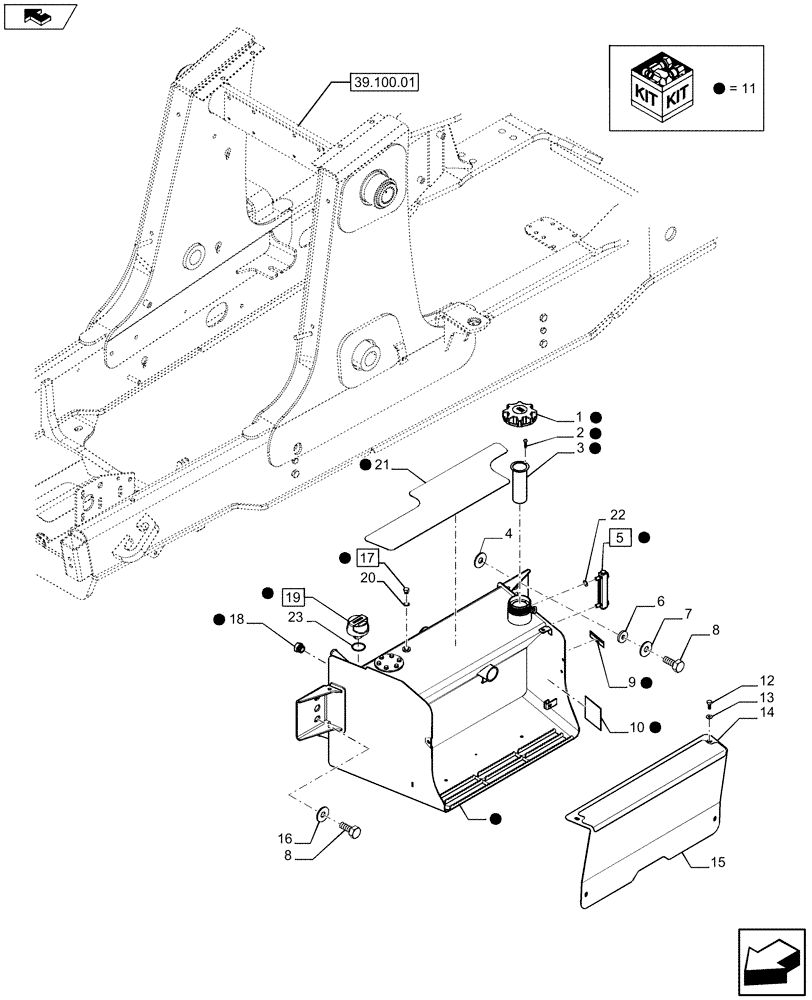

Запчасти Case 590SN (35.300.01) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

84298013

CAP,128.8mm D

1шт.

2

86625195

SCREW,Pan Head, #6 - 32 x 5/8"

2шт.

3

230857A1

FILTER SCREEN

1шт.

4

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

5

226456A1

LEVEL GAUGE

Assy, Incl 22

1шт.

6

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

7

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

8

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

9

321-229

DECAL

Hydraulic Fluid; English Decal Only

1шт.

10

87673270

ADHESIVE STRIP

1шт.

11

84323511

RESERVOIR, HYDRAULIC

1шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

14

87719444

ANTI-SKID STRIP

1шт.

15

84281665

COVER

1шт.

16

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

17

218-5155

PLUG,9/16" - 18 ORB

Assy, Incl 20

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

84329587

BREATHER

Assy, Incl 23

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

84295099

ANTI-SKID STRIP

1шт.

22

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

4шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
