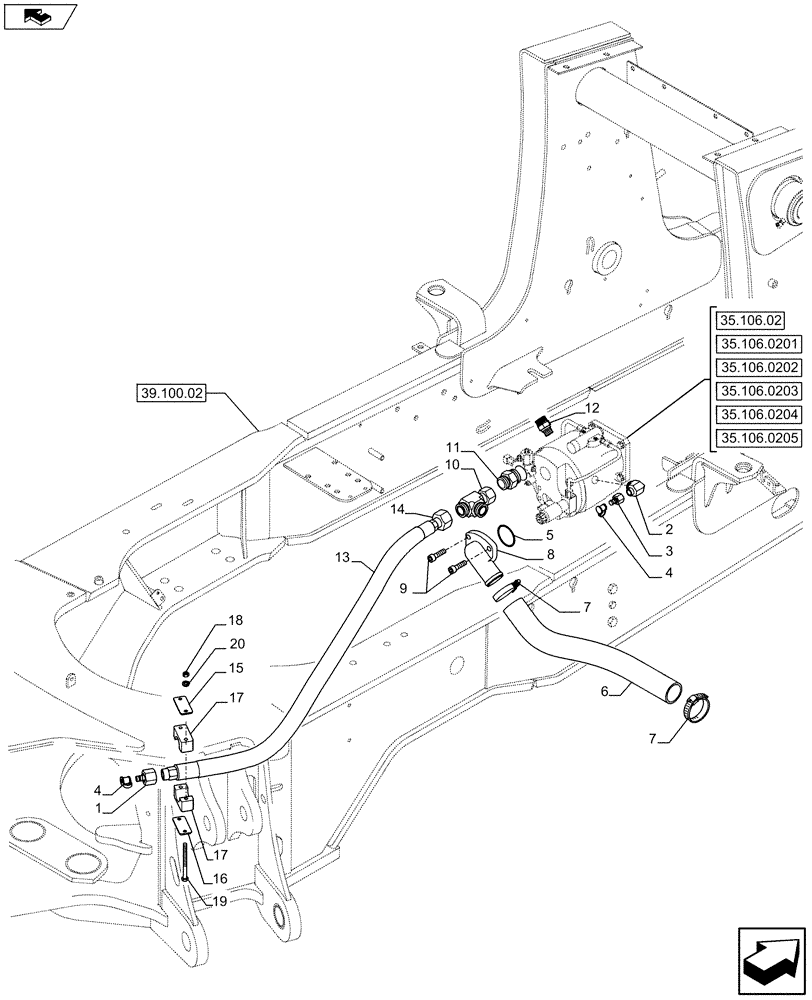

Запчасти Case 590SN (35.106.0101[02]) - VAR - X20233X - , HYDRAULIC PUMP, HYDR LINES (35) - HYDRAULIC SYSTEMS

1

84241474

DIAGNOSTIC COUPLER

1шт.

2

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

1шт.

3

322529A1

COUPLING

1шт.

4

H434163

DUST CAP

2шт.

5

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

6

87729268

HOSE,50.800 mm ID x 421.50 mm, SAE 30R7

1шт.

7

259044A1

CLAMP

2шт.

8

87727923

FLANGE

1шт.

9

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

3шт.

10

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1шт.

11

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

2шт.

12

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

13

84283583

GUARD,34mm ID x 1090mm L

1шт.

14

84282578

HOSE,19mm ID x 1270mm L

1шт.

15

84323544

PLATE

1шт.

16

84283077

BAR PLATE

1шт.

17

84296899

BLOCK

1шт.

18

825-1408

NUT,M8, Cl 8

2шт.

19

725403

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd

2шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.
