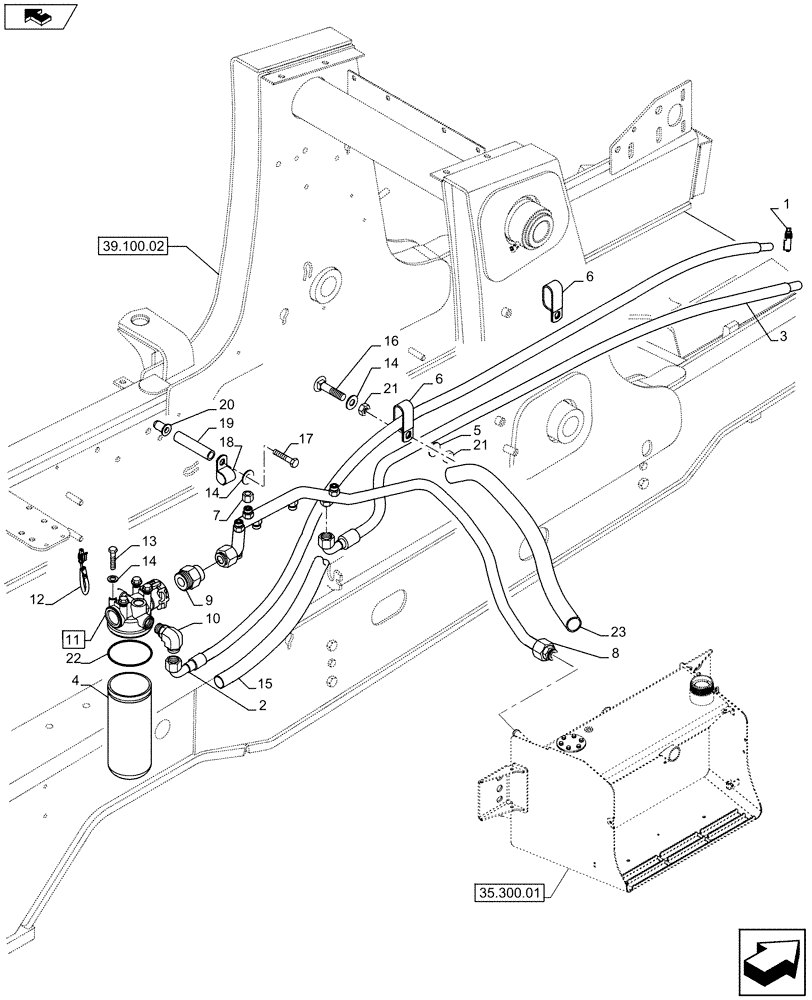

Запчасти Case 590SN (35.106.0101[01]) - VAR - X20233X - FILTER & LINE, HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

1

84499092

CLAMP,Min 14mm, Max 27mm x 14mm Thk

2шт.

2

84326090

HOSE ASSY.,16mm ID x 1857mm L

1шт.

3

84514722

HOSE ASSY.,16mm ID x 1345mm L

1шт.

4

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

1шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Assy, Incl 25 - 26

2шт.

7

87331950

CAP ASSY.,Hex, 11/16"-16

2шт.

8

84514718

HYD TUBE

1шт.

9

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

2шт.

10

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

11

84248499

HYDRAULIC OIL FILTER

Assy, Incl 4, 22

1шт.

12

84292224

WIRE HARNESS

1шт.

13

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

15

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

16

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

17

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

18

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

19

84256840

SPACER,11mm ID x 15.8mm OD x 74mm L

1шт.

20

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

22

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

1шт.

23

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.
