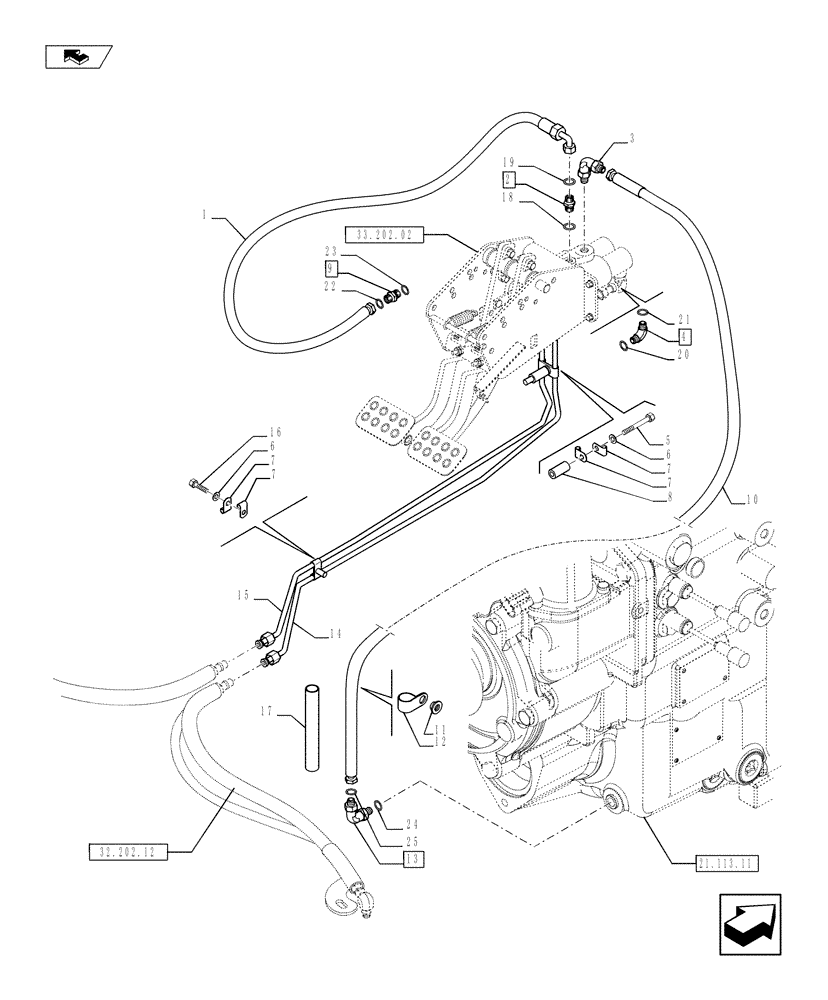

Запчасти Case 590SN (33.202.04) - BRAKE LINES TO TRANSMISSION (33) - BRAKES & CONTROLS

1

87603513

BRAKE LINE,9.5mm ID x 1525mm L

1шт.

2

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Assy, Incl 18 - 19

1шт.

3

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Assy, Incl 20 - 21

2шт.

5

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

10шт.

7

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

4шт.

8

87449579

SPACER,9.5mm ID x 19.05mm OD x 40mm L

1шт.

9

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Assy, Incl 22 - 23

1шт.

10

87603514

BRAKE LINE,9.5mm ID x 1425mm L

1шт.

11

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

12

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.

13

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 24 - 25

1шт.

14

84398009

HYD TUBE

1шт.

15

84398005

HYD TUBE

1шт.

16

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17

87491619

GUARD,19.1mm ID x 1400mm L

1шт.

18

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

19

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

21

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
