(33.110.01) - VAR - 423058 - STANDARD TRANSMISSION - PARKING BRAKE

Запчасти Case 590SN (33.110.01) - VAR - 423058 - STANDARD TRANSMISSION - PARKING BRAKE (33) - BRAKES & CONTROLS

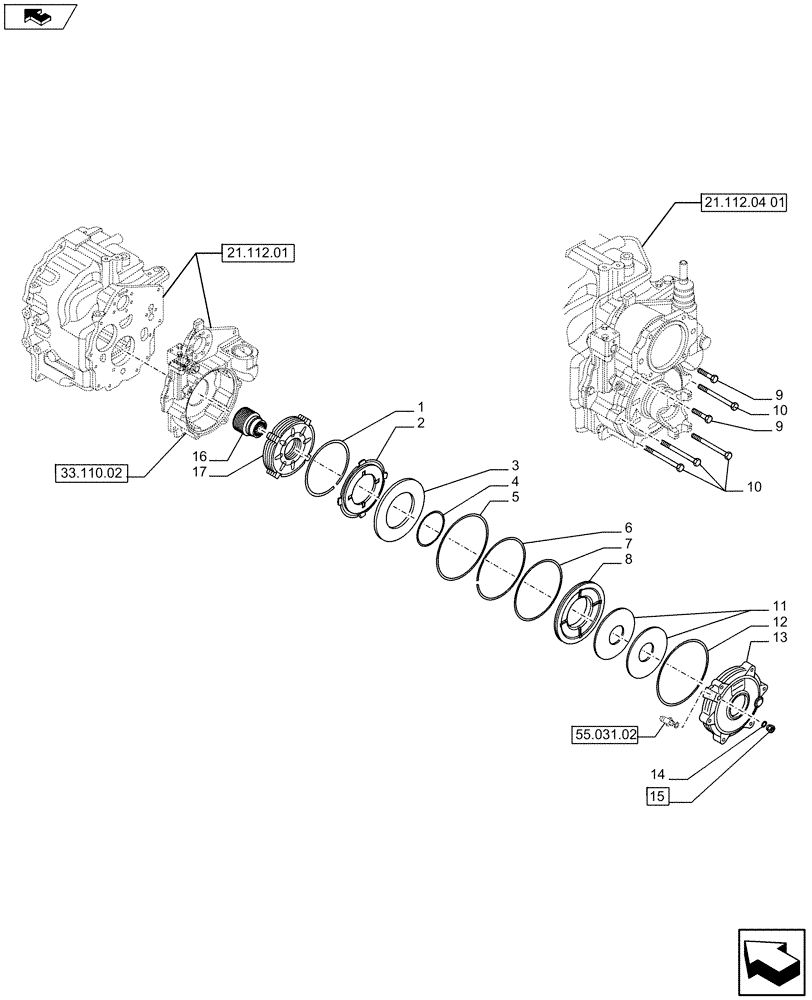

Схема запчастей Case 590SN - (33.110.01) - VAR - 423058 - STANDARD TRANSMISSION - PARKING BRAKE (33) - BRAKES & CONTROLS
17
21.112.04 01
15
11
33.110.02
12
2
9
21.112.01
5
6
10
7
55.031.02
9
10
4
1
8
16
14
13
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87701325

SPACER

5шт.

2

87701324

BRAKE PLATE

1шт.

3

87701323

RETAINING PLATE

1шт.

4

87701321

SEALING RING

1шт.

5

87701320

O-RING

1шт.

6

87701315

RING

1шт.

7

87701318

SEALING RING

1шт.

8

87701317

PISTON

1шт.

9

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

10

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

4шт.

11

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

2шт.

12

87701310

O-RING,0.103" Thk x 8.237" ID, -172, Cl 5, 75 Duro

1шт.

13

87701309

COVER

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 14

1шт.

16

87701328

BUSHING

1шт.

17

87701327

BRAKE PACKAGE

1шт.
