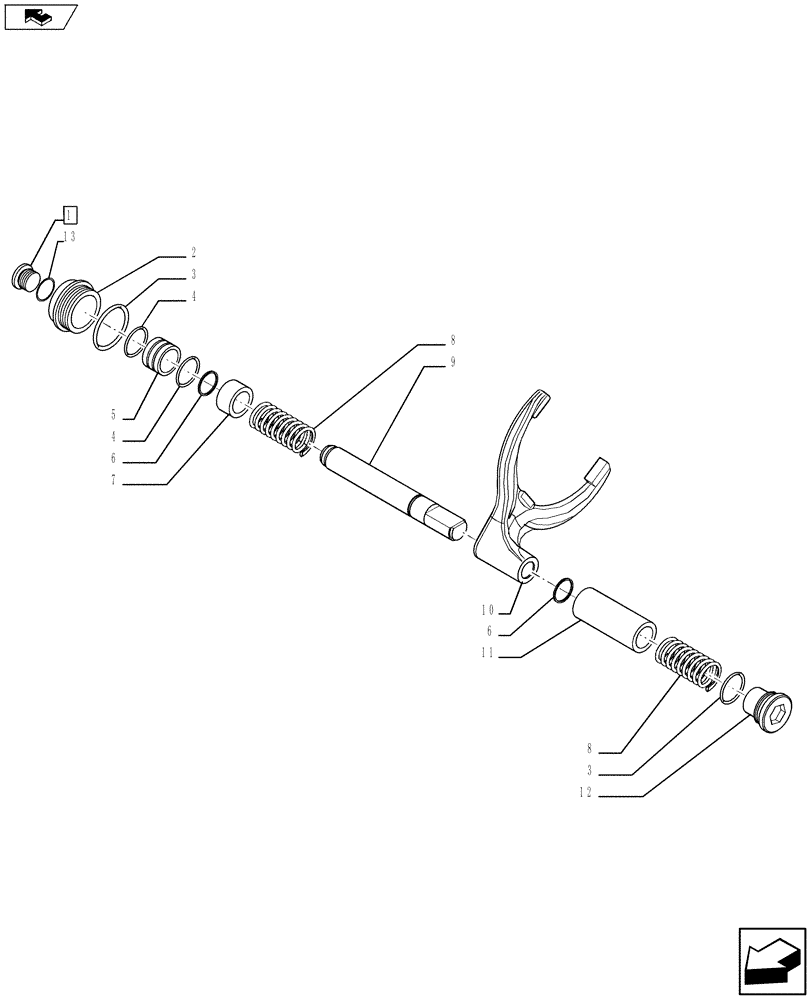

Запчасти Case 590SN (27.106.0301) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

1

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 13

1шт.

2

87708413

CYLINDER

1шт.

3

87708415

O-RING

2шт.

4

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

2шт.

5

292212A1

PISTON

1шт.

6

87708417

CIRCLIP

2шт.

7

87708420

BUSHING

1шт.

8

175966A1

SPRING

2шт.

9

87708963

SHAFT LOCK

1шт.

10

87708424

FORK

1шт.

11

87708964

BUSHING

1шт.

12

87708965

PLUG

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
