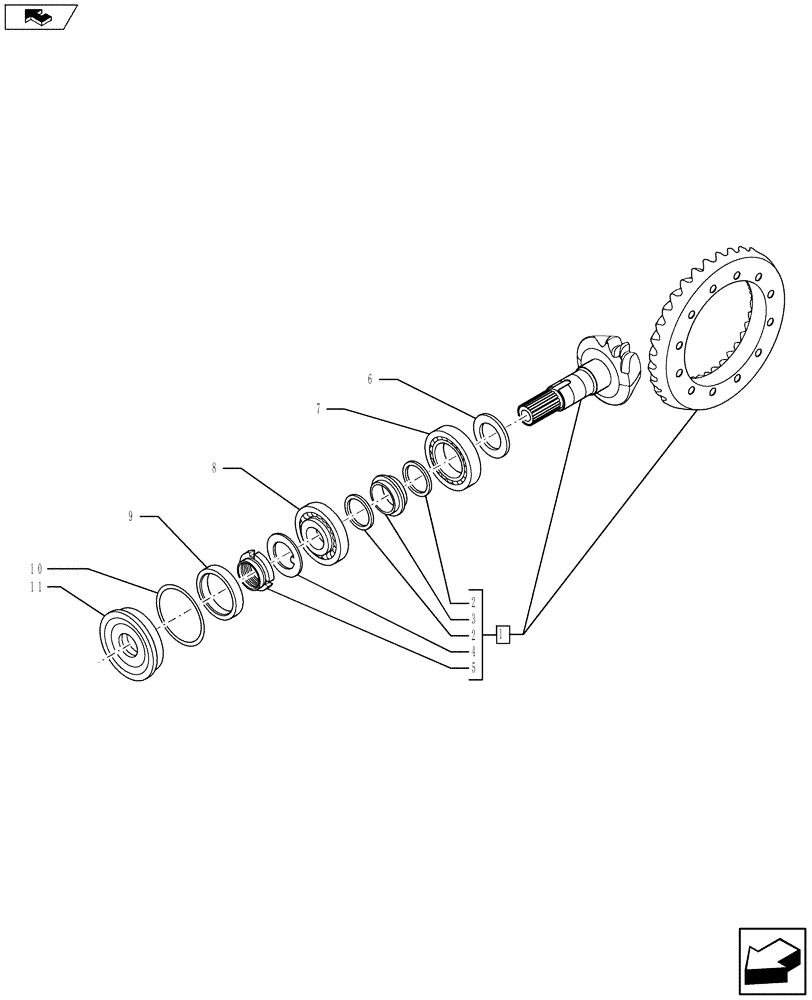

Запчасти Case 590SN (27.106.0201) - AXLE, REAR DRIVE - RING AND PINION (27) - REAR AXLE SYSTEM

1

87708509

GEAR SET

Assy, Incl 2 - 5

1шт.

2

P2745478Q

WASHER

2шт.

3

87711036

SPACER

1шт.

4

E135827

WASHER

1шт.

5

E135765

RING NUT

1шт.

6

87708508

SHIM,2,6mm Thk

2.6mm Thk

1шт.

6

87708510

SHIM,2.7mm Thk

2.7mm Thk

1шт.

6

87708511

SHIM,2.8mm Thk

2.8mm Thk

1шт.

6

87708512

SHIM,2.9mm Thk

2.9mm Thk

1шт.

6

87708513

SHIM,3.0mm Thk

3.0mm Thk

1шт.

6

87708514

SHIM,3.1mm Thk

3.1mm Thk

1шт.

6

87708515

SHIM,3.2mm Thk

3.2mm Thk

1шт.

6

87708516

SHIM,3.3mm Thk

3.3mm Thk

1шт.

6

87708517

SHIM,3.4mm Thk

3.4mm Thk

1шт.

7

371140A1

BALL BEARING

1шт.

8

E135762

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

1шт.

9

87708518

SEALING RING

1шт.

10

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

1шт.

11

87708519

COVER

1шт.
